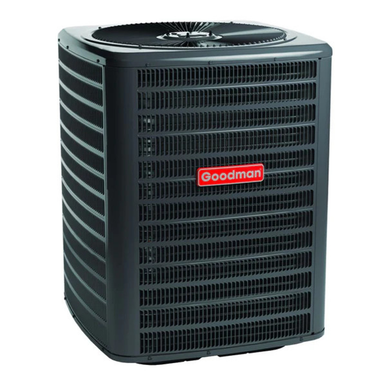

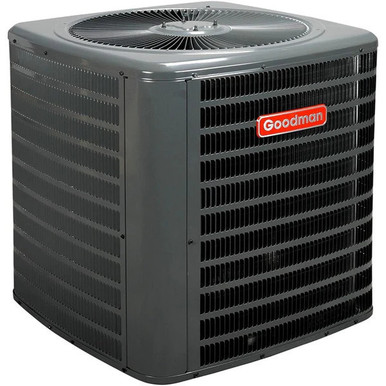

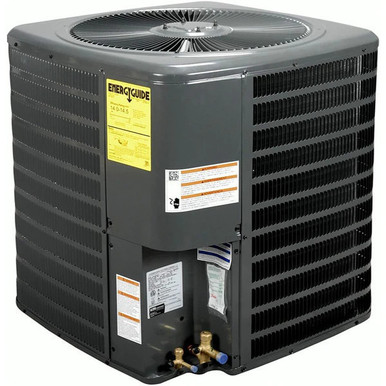

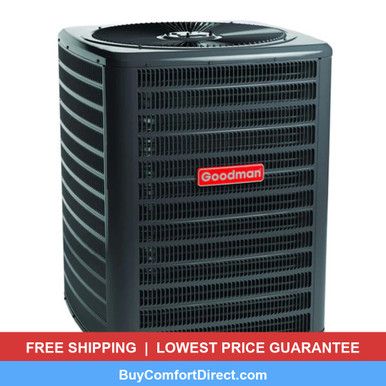

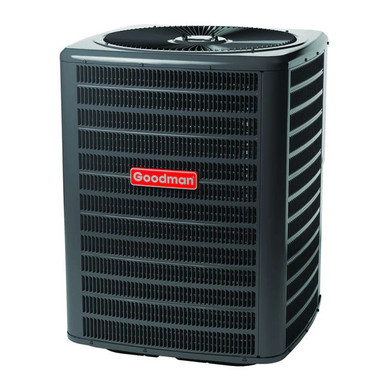

Goodman GLZS4BA4810 4 Ton R-32 Heat Pump
The Goodman GLZS4BA4810 is a 4-ton R-32 heat pump outdoor unit delivering 15.2 SEER2 cooling efficiency and 7.8 HSPF2 heating performance. Featuring a Single-Stage Scroll compressor and environmentally-friendly R-32 refrigerant, this unit provides reliable year-round comfort with advanced efficiency for both heating and cooling applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLZS4BA4810 |
| Product Type | Heat Pump Outdoor Unit |
| Tonnage (Cooling) | 4 Ton |
| Tonnage (Heating) | 4 Ton |
| Cooling Capacity (Nominal) | 48,000 BTU/h |
| Heating Capacity (Nominal) | 48,000 BTU/h |
| SEER2 Rating | 15.2 |
| HSPF2 Rating | 7.8 |
| Refrigerant Type | R-32 |
| Compressor Type | Single-Stage Scroll |
| Compressor RLA | 20.4 A |
| Compressor LRA | 102.0 A |
| Fan Motor Type | PSC |
| Fan Motor HP | 1/3 |
| Fan Motor FLA | 1.8 A |
| Voltage/Phase | 208/230-1 |
| Min Circuit Ampacity | 27.7 A |
| Max Overcurrent Protection | 35 A |
| Sound Level | 74.0 dBA |
| Dimensions (W×D×H) | 35½" × 35½" × 36½" |
| Weight | 284 lbs |
| Refrigerant Charge | 156 oz |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1⅛" |
Comprehensive Warranty Protection
10
Year Parts Warranty
10
Year Compressor Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant
This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones
Goodman's standard 10 year parts warranty when registered online through the manufacturer.
