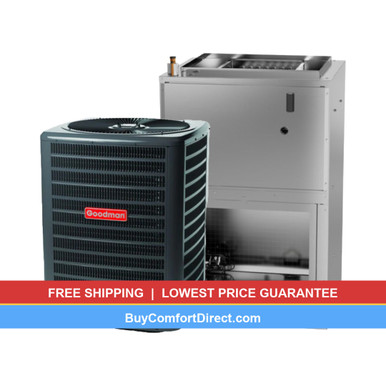

GOODMAN 3 Ton 14.3 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler AND 8kw Heat Kit
brand: Goodman
- SKU:
- GLXS4BA3608, AWST36SU1308
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 3 Ton 14.3 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler AND 8kw Heat Kit
Experience superior comfort cooling with this complete Goodman 3-ton air conditioning system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 14.3 SEER2 air conditioner with a wall-mounted air handler that includes an 8kW electric heat kit for reliable winter heating. Perfect for homes where floor space is limited, this system delivers efficient cooling and heating with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

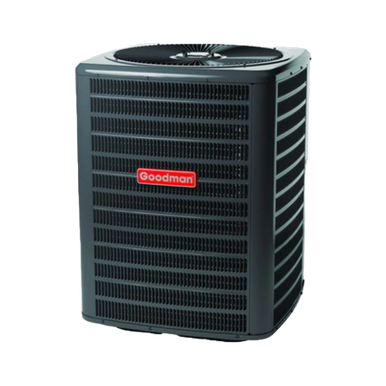

Air Conditioner – GLXS4BA3610A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLXS4BA3610A |
| Tonnage | 3 Ton |
| Cooling Capacity (Nominal) | 36,000 BTU/h |
| SEER2 Rating | 14.3 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 16.0 A |
| Compressor LRA | 80.0 A |
| Fan Motor Type | PSC (1/4 HP) |
| Fan Motor FLA | 1.50 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 21.9 A |
| Max Overcurrent Protection | 30 A |
| Sound Level | 75.5 dBA |
| Dimensions (H×W×D) | 35¼" × 35½" × 35½" |
| Weight | 210 lbs |
| Refrigerant Charge | 130 oz (Factory charged for 15' line) |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |

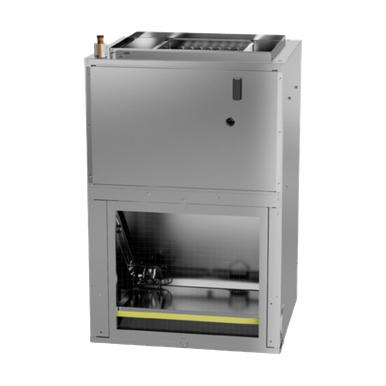

Wall-Hung Air Handler – AWST36LU1308A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | AWST36LU1308A |
| Tonnage | 3 Ton |
| Type | Wall-Hung Indoor Air Handler |
| Refrigerant | R-32 Compatible |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208–230V / 1Ph / 60Hz |
| Integrated Electric Heat Kit | 8 kW (27,297 BTU/h) |
| Heat Kit Voltage | 208–230V / 1Ph / 60Hz |
| Heat Kit Amperage | 34.8 A @ 230V |
| Heat Kit Stages | 3-Stage (3kW + 3kW + 2kW) |
| Metering Device | TXV (Thermal Expansion Valve) |
| Liquid Connection | ⅜" |
| Suction Connection | ⅞" |
| Dimensions (H×W×D) | 31" × 33" × 11" |
| Weight | 85 lbs |
| Filter Type | Washable/Reusable |
| Mounting | Wall-Mount Bracket Included |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 air conditioner meets Department of Energy minimum efficiency requirements for all U.S. climate zones
