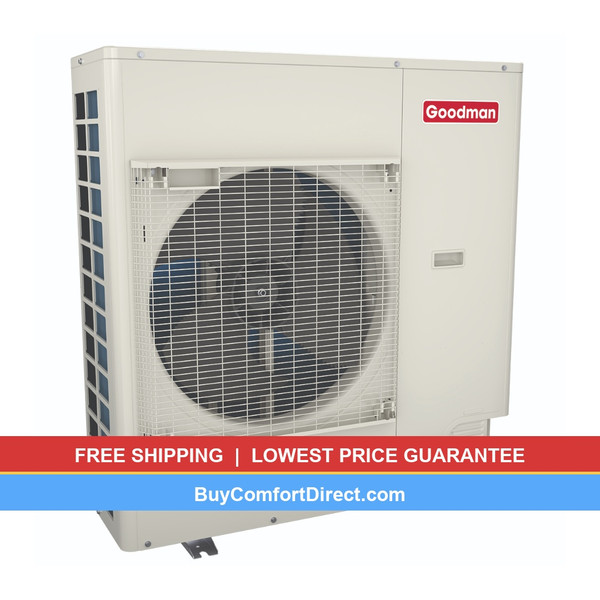

Goodman 3 Ton R-32 Air Conditioner Condenser - GXV6SS3610

The Goodman GXV6SS3610 is a high-efficiency 3-ton air conditioning condenser unit rated at 16.2 SEER2. This outdoor unit uses eco-friendly R-32 refrigerant and features a reliable swing compressor for quiet, efficient cooling. Designed for residential applications, it provides consistent comfort while meeting modern energy efficiency standards. This condenser requires a compatible indoor evaporator coil or air handler (sold separately) to complete your cooling system.

Technical Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GXV6SS3610
Product Type	Air Conditioning Condenser
Tonnage	3 Tons
Cooling Capacity	34,200 BTU/h
SEER2 Rating	16.2
Refrigerant Type	R-32
Refrigerant Charge	83.0 oz
Compressor Type	Swing
Voltage/Phase/Frequency	208/230-230V/1-Ph/60Hz
Min Circuit Ampacity	22.4 A
Max Overcurrent Protection	25.0 A
Sound Level	68 dBA
Liquid Line Size	⅜"
Suction Line Size	⅞"
Dimensions (W×D×H)	36.625" × 13.75" × 27.375"
Shipping Weight	148 lbs

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This 16.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones

Goodman's standard 10 year parts warranty when registered online through the manufacturer.
