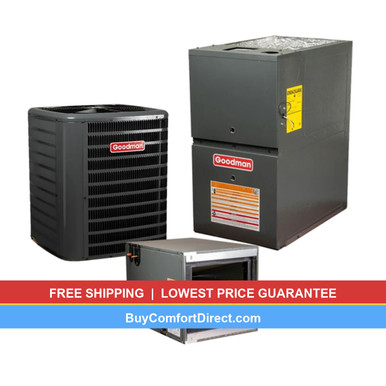

GOODMAN 4 Ton 17.2 SEER2 R-32 80% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
brand: Goodman
- SKU:
- GLXT7CA4810, CHPTA6030D3, GRVT800804CN
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 4 Ton 17.2 SEER2 R-32 80% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
Experience reliable home comfort with this complete Goodman 4-ton HVAC system (Horizontal Coil). This matched system combines a high-efficiency 17.2 SEER2 air conditioner, a 80% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications

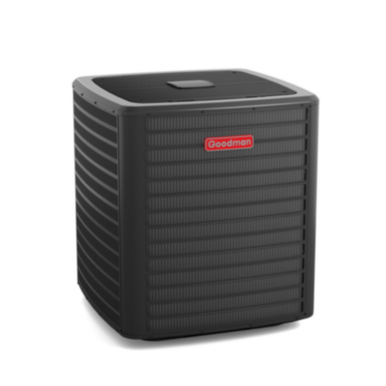

Air Conditioner — GLXT7CA4810 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXT7CA4810 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 4 Ton |
| Cooling Capacity | 48,000 BTU/h |
| SEER2 Rating | 17.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 180 oz |
| Compressor Type | Two-Stage Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 31.6 A |
| Max Overcurrent Protection | 50 A |
| Sound Level | 73 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1⅛" |
| Dimensions (W×D×H) | 36" × 13" × 27.4" |
| Shipping Weight | 281 lbs |

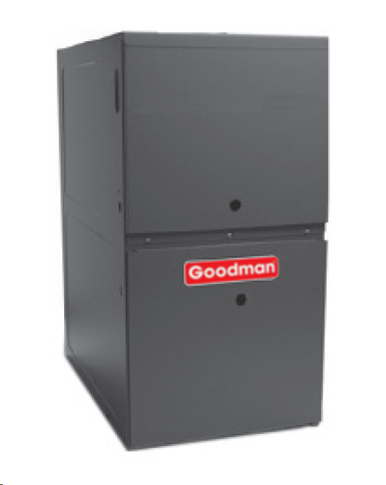

Gas Furnace — GRVT800804CN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GRVT800804CN |
| Product Type | Gas Furnace |
| BTU Input | 80,000 BTU/h |
| BTU Output | 64,000 BTU/h |
| AFUE | 80% |
| Heating Stages | Two Stage |
| Blower Motor Type | Variable Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 115V-1-60Hz |
| Min Circuit Ampacity | 7.6 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0" × 29.0" × 44.0" |
| Shipping Weight | 118 lbs |
Evaporator Coil — CHPTA6030D3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CHPTA6030D3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 5 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ⅞" |
| Dimensions (W×D×H) | 30.0" × 21.0" × 24.5" |
| Shipping Weight | 82 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 17.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
