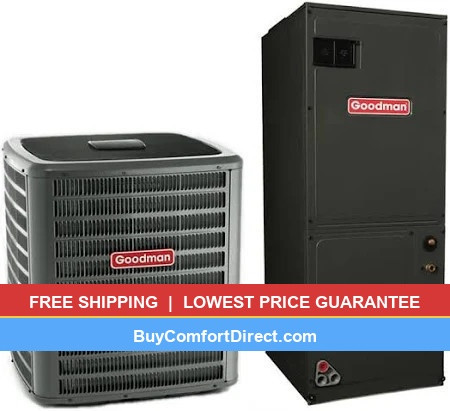

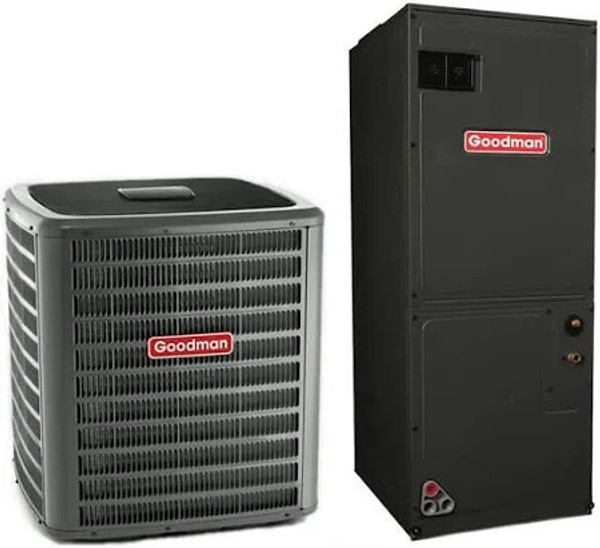

Goodman 4 Ton Full 2 Stage Heat Pump System 17.2 SEER2 10KW 24" Wide R-32

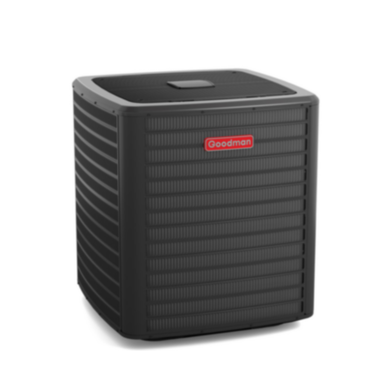

Heat Pump:

Two-Stage Copeland® UltraTech scroll compressor • High-density foam compressor sound blanket • Integrated communicating ComfortBridge™ technology • Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application • Goodman® GTST Connected Thermostat Compatibility • ComfortAlert™ built in diagnostics • Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T • Copper tube/enhanced aluminum fin coil -7mm on 4.0-5.0 T • Efficient, two-speed ECM condenser fan motor • Simple low-voltage wiring to outdoor unit in communicating mode • Diagnostic indicator lights and storage of six fault codes • Color-coded terminal strip for non-communicating set-up • High- and low-pressure switches • Time-delay technology with short-cycle protection to ensure quiet, reliable defrost • Factory-installed bi-flow liquid-line filter drier • Factory-installed suction-line accumulator • Factory-installed compressor crankcase heater • Factory-installed high-capacity muffler • Factory-installed coil and ambient temperature sensors • AHRI Certified; ETL Listed

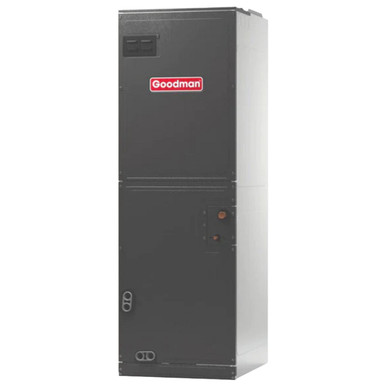

Air Handler:

Internal factory-installed thermal expansion valves for cooling and heat pump applications • Variable-speed ECM blower motor • Compatible with Goodman smart thermostat and other Goodman communicating equipment • Auto configuration of the airflow and tonnage in communicating mode • All-aluminum evaporator coil • Provides constant CFM over a wide range of static pressure conditions independent of duct system • CFM indicator • Fault recall of six most recent faults • Provides adjustable low CFM for efficient fan-only operation • Improved humidity and comfort control • Built-in compatibility with multi-stage heat pump and cooling applications • Factory installed R-32 sensor designed for the lifespan of the coil • Optimized for the use with R-32 refrigerant • UL 60335 2-40 Compliant • AHRI certified; ETL listed • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193 • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193 • 3 kW – 25 kW electric heater kits • Horizontal or vertical configuration capabilities • 21” depth for easier attic access • DecaBDE-free thermoplastic drain pan with secondary drain connections • Screw-less sides and back helps to reduce condensation when installed in humid locations • Foil-faced insulation covers the internal casing to reduce cabinet condensation • Galvanized, leather grain-embossed finish • Glue-less cabinet insulation retention • Tool-less filter access

AMVT Air Handler Spec Sheet

GLZT7C Heat Pump Spec Sheet
