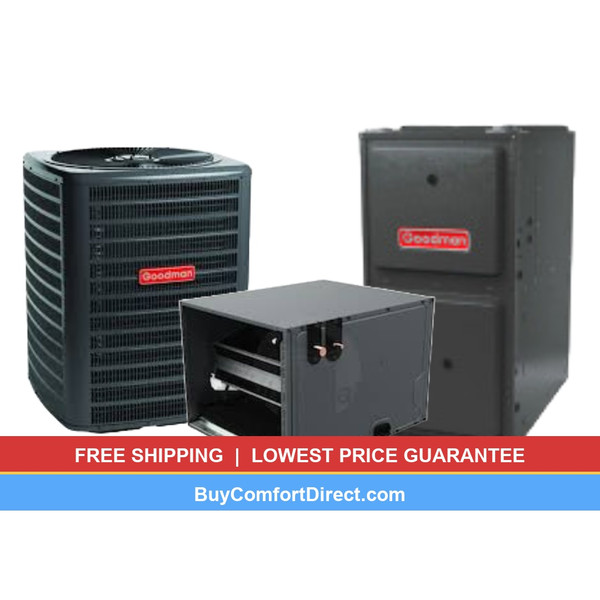

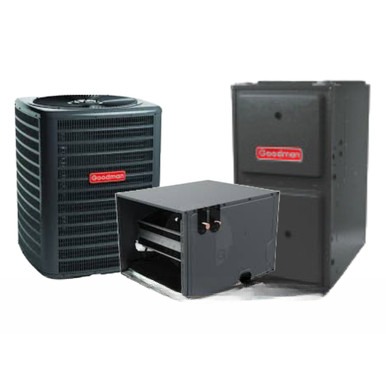

Goodman 4 Ton Horizontal 92% Gas System 14.3 SEER2 21" Wide R-32
brand: Goodman
- SKU:
- GLXS4BA4810, GR9S920804CNA, CHPTA4830C3
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 4 Ton 14.3 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
Experience reliable home comfort with this complete Goodman 4-ton R-32 HVAC system (Horizontal Coil). This matched system combines a high-efficiency 14.3 SEER2 air conditioner, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal "A" evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Complete System Components (Horizontal Coil)
Air Conditioner
Goodman GLXS4BA4810A
4.0 Ton (48,000 BTU/h)
Single-Stage Scroll Compressor
R-32 Refrigerant
14.3 SEER2
Gas Furnace
Goodman GR9S920804CNA
80,000 BTU/h Input
73,680 BTU/h Output
92% AFUE
Single-Stage Multi-Speed ECM
Evaporator Coil
Goodman CHPTA4830C3
3½-4 Ton Cased Horizontal "A" Coil
All-Aluminum Construction
Factory-Installed TXV
R-32 Compatible
Technical Specifications
Air Conditioner – GLXS4BA4810A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLXS4BA4810A |
| Tonnage | 4.0 Ton |
| Cooling Capacity (Nominal) | 48,000 BTU/h |
| SEER2 Rating | 14.3 |
| EER2 Rating | 11.2 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Scroll |
| Compressor RLA | 19.4 A |
| Compressor LRA | 127.7 A |
| Fan Motor Type | PSC (1/5 HP) |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 25.9 A |
| Max Overcurrent Protection | 40 A |
| Sound Level | 75.0 dBA |
| Dimensions (H×W×D) | 35⅝" × 35⅜" × 35⅜" |
| Weight | 211 lbs |
| Refrigerant Charge | 142 oz (Factory charged for 15' line) |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |
Gas Furnace – GR9S920804CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GR9S920804CNA |
| BTU Input | 80,000 BTU/h |
| BTU Output | 73,680 BTU/h |
| AFUE | 92% |
| Stages | Single-Stage |
| Blower Motor | Multi-Speed ECM (9-Speed) |
| Blower HP | 3/4 HP |
| Blower Size | 10" × 10" |
| Number of Burners | 4 |
| Voltage | 115 VAC, 60 Hz, Single-Phase |
| Min Circuit Ampacity | 13.7 A |
| Max Overcurrent Device | 20 A |
| Temperature Rise Range | 35–65°F |
| Vent Diameter | 2" - 3" |
| Filter Size | (1) 16" × 25" (side or bottom) |
| Cabinet Width | 21" |
| Dimensions (W×D×H) | 21" × 28⅞" × 34½" |
| Weight | 139 lbs |

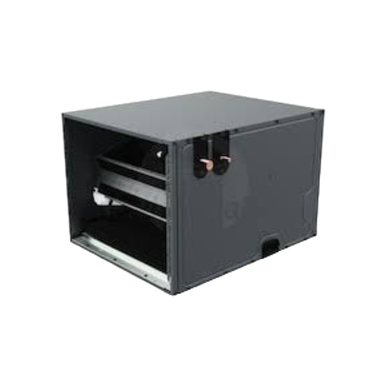

Evaporator Coil – CHPTA4830C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | CHPTA4830C3 |
| Tonnage | 3½–4 Ton |
| Type | Cased Horizontal "A" Indoor Coil |
| Expansion Device | Factory-Installed TXV (Thermal Expansion Valve) |
| Refrigerant | R-32 Compatible |
| Construction | All-Aluminum A-Coil |
| Dimensions (W×D×H) | 30" × 21" × 21" |
| Weight | 78 lbs |
| Liquid Connection | ⅜" |
| Suction Connection | ⅞" |
| Cabinet Style | Cased with Drain Pan |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 air conditioner meets Department of Energy minimum efficiency requirements for all U.S. climate zones
