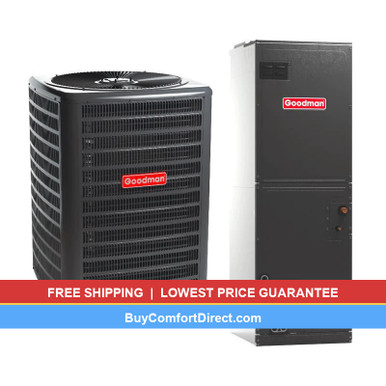

Goodman 5 Ton 14.3 SEER2 Heat Pump System with Air Handler – Multi-Position – GLZS4BA6010

Goodman 5 Ton 14.3 SEER2 Heat Pump System with Air Handler – Multi-Position – GLZS4BA6010

Name: GOODMAN 5 Ton 14.3 SEER2 R-32 Heat - GLZS4BA6010 | Buy Comfort Direct
SKU: GLZS4BA6010, AMST60DU13
Price: 6560.00 USD
Availability: InStock

$6,560.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Lower price in cart — extra Goodman savings apply automatically at checkout.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (7/8" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

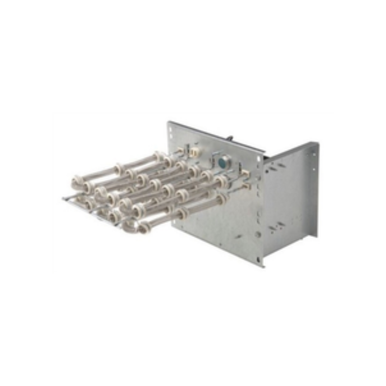

Electric Heat KitBackup / supplemental electric heat strip for the air handler

Your system total: $6,560.00

Product Details

Model Numbers: GLZS4BA6010
AMST60DU13
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:5 Ton Heat Pumps & Heat Pump Systems 5-Ton Heat Pump + Air Handler Systems Split Heat Pump Systems

Description

GOODMAN 5 Ton 14.3 SEER2 R-32 Heat Pump System with Multi-Positional Air Handler

Experience year-round comfort with this premium Goodman 5-ton R-32 14.3 SEER2 heat pump system. This complete matched system combines a high-efficiency heat pump outdoor unit with a versatile multi-positional air handler. Designed for reliable heating and cooling performance, this system delivers exceptional energy efficiency, quiet operation, and dependable comfort with the environmentally-friendly R-32 refrigerant.

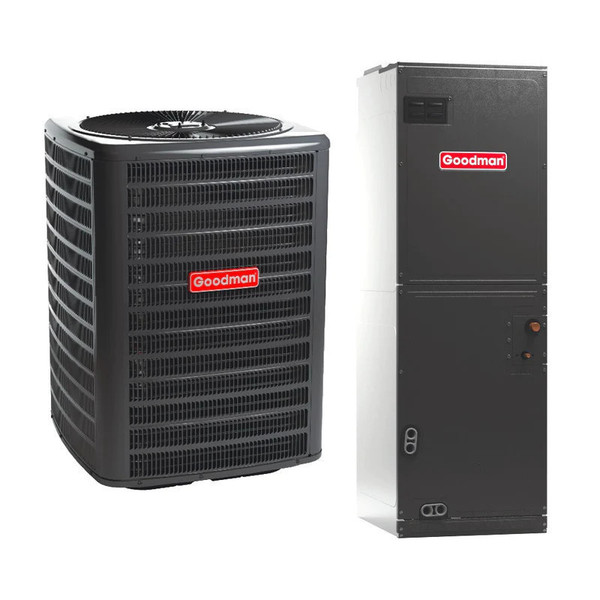

Complete System Components

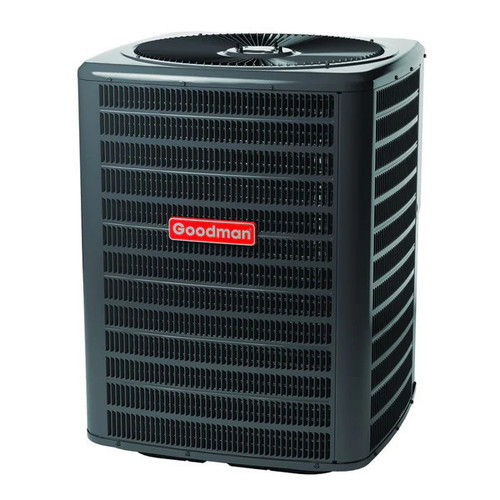

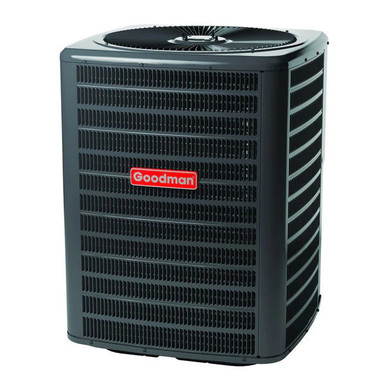

Heat Pump

Goodman GLZS4BA6010
5.0 Ton (60,000 BTU/h)
Single-Stage Scroll Compressor
R-32 Refrigerant
Up to 15.2 SEER2

Multi-Positional Air Handler

Goodman AMST60DU13
5.0 Ton (60,000 BTU/h)
Multi-Speed MS-ECM Motor
R-32 Compatible
Multiple Installation Positions

Technical Specifications

Heat Pump — GLZS4BA6010 Specifications

Specification	Value
Manufacturer	Goodman
Tonnage	5.0 Ton
Refrigerant	R-32
SKU/Model No	GLZS4BA6010A
Product Type	Split System Heat Pump
Cooling Capacity	60,000 BTU/h
Heating Capacity (47°F)	60,000 BTU/h
SEER2 Rating	Up to 15.2
EER2 Rating	Up to 11.5
HSPF2 Rating	Up to 7.8
Compressor Type	Single-Stage Scroll
Voltage	208-230V / 1Ph / 60Hz
RLA (Running Load Amps)	23.9 A
LRA (Locked Rotor Amps)	148.0 A
Min Circuit Ampacity	31.1 A
Max Overcurrent Protection	50 A
Liquid Line Size	⅜”
Suction Line Size	1⅛”
Refrigerant Charge	194 oz
Dimensions (H×W×D)	41¾” × 35½” × 35½”
Weight	300 lbs
Sound Level	75 dBA

Air Handler — AMST60DU13 Specifications

Specification	Value
Manufacturer	Goodman
Tonnage	5.0 Ton
Refrigerant	R-32 Compatible
SKU/Model No	AMST60DU1300AA
Product Type	Multi-Positional Air Handler
Motor Type	Multi-Speed ECM
Motor HP	1½ HP
Nominal Cooling Capacity	60,000 BTU/h
Blower Diameter	12″ × 10″
Voltage	208-240V / 1Ph / 60Hz
Full Load Amps (FLA)	8.4 A
Min Circuit Ampacity	10.5 A
Max Overcurrent Device	20 A
Liquid Line Connection	⅜”
Suction Line Connection	1⅛”
Coil Drain Connection	¾” FPT
Metering Device	TXV (Internal)
Cabinet Width	24.5″
Cabinet Configuration	Multi-Positional (D Cabinet)
Dimensions (H×W×D)	69⅝” × 23⅞” × 25⁹⁄₁₆”
Weight	239 lbs

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant for Northern Regions

This complete R-32 14.3 SEER2 heat pump system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Additional information

Weight	467.00 lbs
Dimensions	21.00 × 30.00 × 54.00 in
System Type	Heat Pump + Air Handler System
Brand	Goodman
Tonnage	5 Ton
SEER2	14.3
HSPF2	7.8
Refrigerant	R-32
Stages	Single Stage
Airflow Direction	Multi-Position
Cabinet Width	24.5"
Voltage	208/230V
