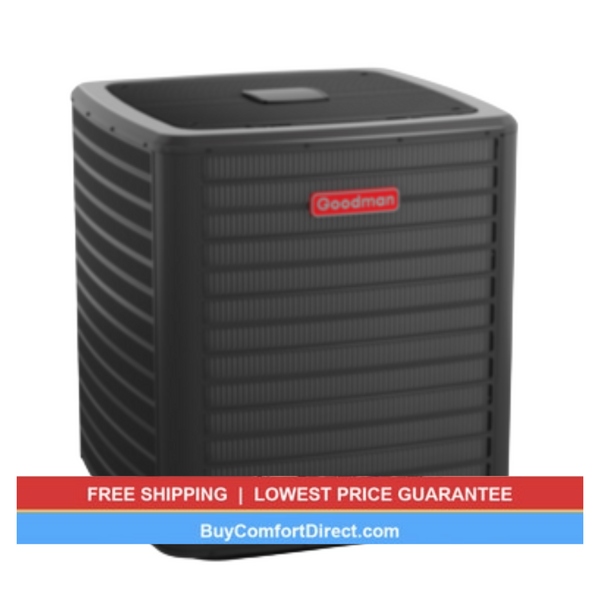

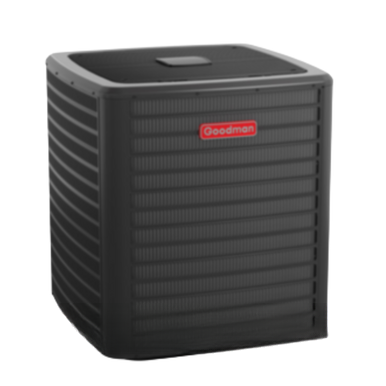

GOODMAN 5 Ton 15.2 SEER2 R-32 Air Conditioner — GLXS5BA6010

The Goodman GLXS5BA6010 is a high-efficiency 5-ton air conditioner condenser, delivering 15.2 SEER2 cooling performance. Featuring a Scroll compressor and reliable R-32 refrigerant, this unit provides consistent cooling efficiency and dependable operation for residential comfort applications.

Technical Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GLXS5BA6010
Product Type	Air Conditioner Condenser
Tonnage	5 Ton
Cooling Capacity	60,000 BTU/h
SEER2 Rating	15.2
Refrigerant Type	R-32
Refrigerant Charge	167 oz
Compressor Type	Scroll
Voltage/Phase/Frequency	208/230V-1-60Hz
Min Circuit Ampacity	36.4 A
Max Overcurrent Protection	60 A
Sound Level	76.0 dBA
Liquid Line Size	⅜"
Suction Line Size	1⅛"
Dimensions (W×D×H)	35" × 35" × 41.625"
Shipping Weight	287 lbs

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This 15.2 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Goodman's standard 10 year parts warranty when registered online through the manufacturer.
