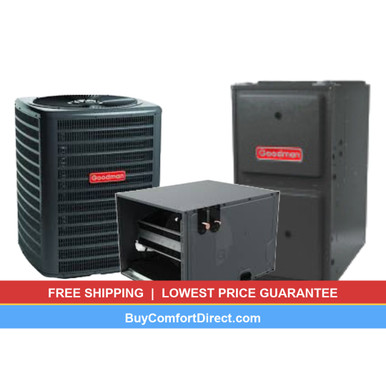

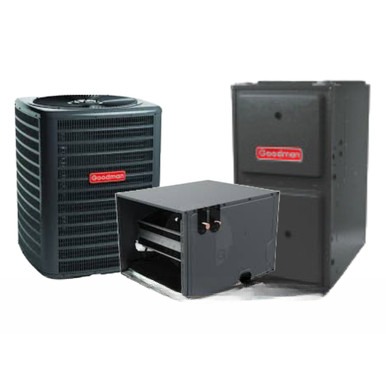

Goodman 5 Ton 14.3 SEER2 100,000 BTU 92% AFUE Dual Fuel System – Horizontal – GLZS4BA6010

Goodman 5 Ton 14.3 SEER2 100,000 BTU 92% AFUE Dual Fuel System – Horizontal – GLZS4BA6010

Name: Goodman 5 Ton Horizontal Dual Fuel 92% - GLZS4BA6010 | Buy Comfort Direct
SKU: GLZS4BA6010, GR9S921005CNA, CHPTA6030D3
Price: 7778.00 USD
Availability: InStock

$7,778.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Lower price in cart — extra Goodman savings apply automatically at checkout.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (7/8" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Propane (LP) Conversion KitOnly if the furnace will run on propane instead of natural gas

Your system total: $7,778.00

Product Details

Model Numbers: GLZS4BA6010
GR9S921005CNA
CHPTA6030D3
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:5 Ton Heat Pumps & Heat Pump Systems 5-ton Dual Fuel Systems Furnace + Heat Pump Systems

Description

GOODMAN 5 Ton 14.3 SEER2 R-32 92% AFUE Gas Furnace Heat Pump System (Horizontal Coil)

Experience superior year-round comfort with this complete Goodman 5-ton dual fuel system (Horizontal Coil). This matched system combines a high-efficiency 14.3 SEER2 heat pump for efficient heating and cooling, a 92% AFUE single-stage gas furnace with multi-speed ECM blower for backup heating, and a precision-engineered horizontal evaporator coil with factory-installed TXV. As a dual fuel system, it intelligently switches between the heat pump and gas furnace to optimize energy efficiency and comfort in all weather conditions, delivering reliable performance with environmentally-friendly R-32 refrigerant.

Complete System Components (Horizontal Coil)

Heat Pump

Goodman GLZS4BA6010A
5 Ton (60,000 BTU/h)
Single-Stage Rotary Compressor
R-32 Refrigerant
14.3 SEER2 / 7.5 HSPF2

Gas Furnace

Goodman GR9S921005CNA
100,000 BTU/h Input
92,100 BTU/h Output
92% AFUE
Single-Stage Multi-Speed ECM

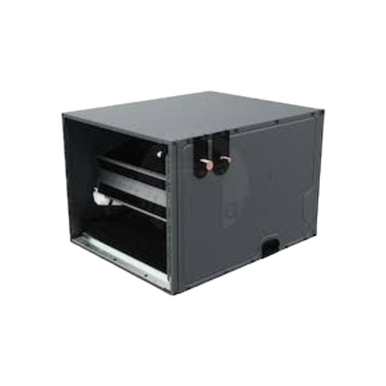

Evaporator Coil

Goodman CHPTA6030D3
5 Ton Cased Horizontal Coil
All-Aluminum Construction
Factory-Installed TXV
R-32 Compatible

Technical Specifications

Heat Pump – GLZS4BA6010A Specifications

Specification	Value
Manufacturer	Goodman
Model	GLZS4BA6010A
Tonnage	5 Ton
Cooling Capacity (Nominal)	60,000 BTU/h
Heating Capacity (Nominal)	60,000 BTU/h
SEER2 Rating	14.3
HSPF2 Rating	7.5
Refrigerant	R-32
Compressor Type	Single-Stage Rotary
Compressor RLA	26.0 A
Compressor LRA	130.0 A
Fan Motor Type	PSC (1/3 HP)
Fan Motor FLA	2.40 A
Voltage	208–230V / 1Ph / 60Hz
Min Circuit Ampacity	35.5 A
Max Overcurrent Protection	50 A
Sound Level	77.0 dBA
Dimensions (H×W×D)	35¼” × 35½” × 35½”
Weight	260 lbs
Refrigerant Charge	205 oz (Factory charged for 15′ line)
Liquid Line Size	⅜”
Suction Line Size	1⅛”

Gas Furnace – GR9S921005CNA Specifications

Specification	Value
Manufacturer	Goodman
Model	GR9S921005CNA
BTU Input	100,000 BTU/h
BTU Output	92,100 BTU/h
AFUE	92%
Stages	Single-Stage
Blower Motor	Multi-Speed ECM (9-Speed)
Blower HP	3/4 HP
Blower Size	11″ × 10″
Number of Burners	5
Voltage	115 VAC, 60 Hz, Single-Phase
Min Circuit Ampacity	10.1 A
Max Overcurrent Device	15 A
Temperature Rise Range	35–65°F
Vent Diameter	2″
Filter Size	(1) 24″ × 25″ (side) or (1) 21″ × 25″ (bottom)
Cabinet Width	21″
Dimensions (W×D×H)	21″ × 23″ × 34½”
Weight	141 lbs

Evaporator Coil – CHPTA6030D3 Specifications

Specification	Value
Manufacturer	Goodman
Model	CHPTA6030D3
Tonnage	4–5 Ton
Type	Cased Horizontal Indoor Coil
Expansion Device	Factory-Installed TXV (Thermal Expansion Valve)
Refrigerant	R-32 Compatible
Construction	All-Aluminum A-Coil
Dimensions (W×D×H)	30″ × 21″ × 24½”
Weight	82 lbs
Liquid Connection	⅜”
Suction Connection	1⅛”
Cabinet Style	Cased with Drain Pan

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

⧫

Lifetime Heat Exchanger Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones

Additional information

Weight	445.00 lbs
Dimensions	28.00 × 21.00 × 33.50 in
System Type	Dual Fuel System
Brand	Goodman
Tonnage	5 Ton
SEER2	14.3
HSPF2	7.5
AFUE	92%
Heating BTU	100,000 BTU
Refrigerant	R-32
Stages	Single Stage
Airflow Direction	Horizontal
Cabinet Width	21"
Blower Motor	Multi-Speed ECM
Voltage	115V
