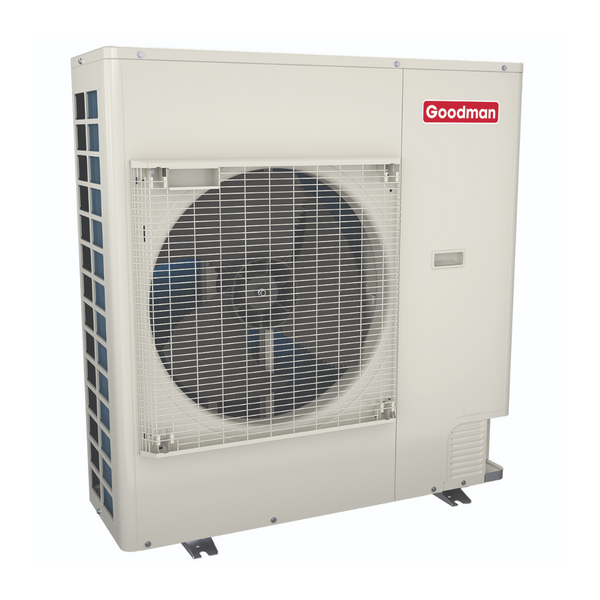

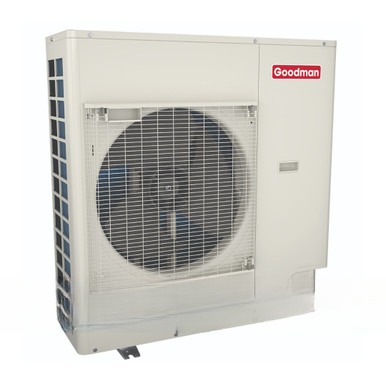

Goodman 5 Ton R-32 Air Conditioner Condenser - GXV6SS6010
The Goodman GXV6SS6010 is a high-efficiency 5-ton air conditioning condenser unit rated at 16.2 SEER2. This outdoor unit uses eco-friendly R-32 refrigerant and features a reliable swing compressor for quiet, efficient cooling. Designed for residential applications, it provides consistent comfort while meeting modern energy efficiency standards. This condenser requires a compatible indoor evaporator coil or air handler (sold separately) to complete your cooling system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GXV6SS6010 |
| Product Type | Air Conditioning Condenser |
| Tonnage | 5 Tons |
| Cooling Capacity | 53,500 BTU/h |
| SEER2 Rating | 16.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 118.0 oz |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37.5 A |
| Max Overcurrent Protection | 40.0 A |
| Sound Level | 72 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1⅛" |
| Dimensions (W×D×H) | 37.0" × 12.625" × 39.0" |
| Shipping Weight | 196 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 16.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
The GXV6SS6010 is Goodman's variable-speed air conditioner in the 5-ton class — 16.2 SEER2 with R-32, maximum residential capacity with longer, quieter cycles than single-stage condensers. Pair it with a matched coil or air handler for full rated performance. See all 5-ton Goodman air conditioners, or run the free sizing tool if you're between sizes.
