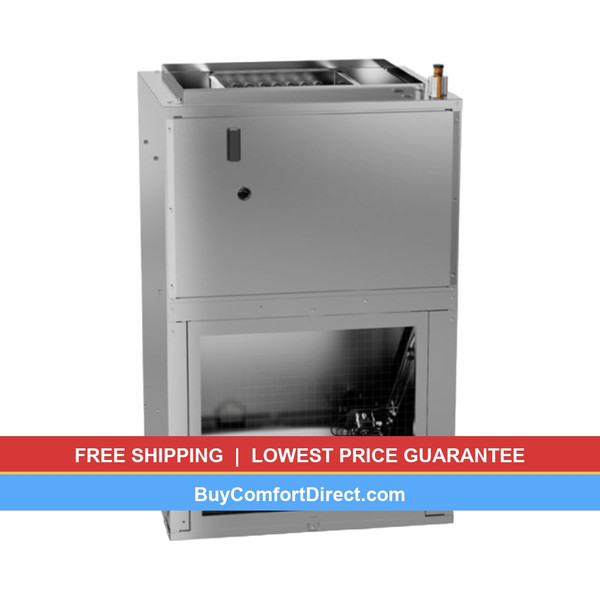

Goodman AWST36LU1308A Wall-Mount Air Handler
The Goodman AWST36LU1308A is a wall-mount air handler designed for residential HVAC applications. Featuring a variable-speed ECM blower motor and durable construction, this air handler provides efficient air circulation and reliable performance when paired with compatible R-32 heat pump or air conditioning systems. Its compact wall-mount design makes it ideal for installations where floor space is limited.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | AWST36LU1308A |
| Product Type | Wall-Mount Air Handler |
| Cooling Capacity | 36,000 BTU/h |
| Tonnage Range | 3.0 Ton |
| Electric Heat | 8 kW |
| Voltage | 208/230V, 1 Phase, 60 Hz |
| Cabinet Width | 24" |
| Dimensions (W×D×H) | 24" × 21" × 36" |
| Liquid Line Connection | ⅜" OD |
| Suction Line Connection | ¾" OD |
| Shipping Weight | 109 lbs |
Comprehensive Warranty Protection
10
Year Parts Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant
This air handler is designed for use with DOE-compliant HVAC systems
Goodman's standard 10 year parts warranty when registered online through the manufacturer.
