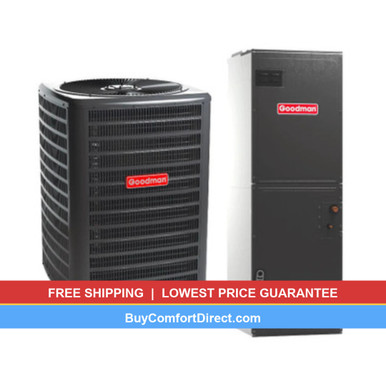

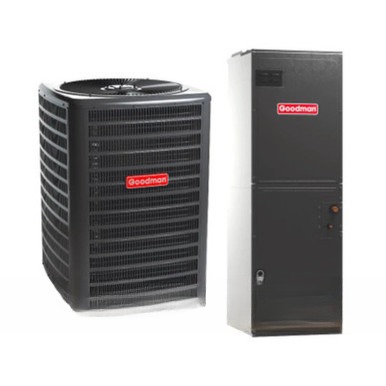

GOODMAN GLXS3BN4810 - 4.0 Ton 13.4 SEER2 Single-Stage Air Conditioner System
brand: Goodman
- SKU:
- GLXS3BN4810, AMST48CU13, HKTSN10X1
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN GLXS3BN4810 - 4.0 Ton 13.4 SEER2 Single-Stage Air Conditioner System
Complete 4.0-ton Goodman single-stage air conditioner system engineered for efficient cooling and reliable performance. Includes GLXS3BN4810 outdoor condenser, AMST48CU13 air handler, and 10 kW heat kit for maximum supplemental heating capacity.
System Components
Air Conditioner: GLXS3BN4810
4.0-ton single-stage outdoor condenser using a scroll compressor and R-410A refrigerant, designed for powerful cooling performance.
Air Handler: AMST48CU13
4.0-ton multi-position air handler with multi-speed ECM blower motor and durable all-aluminum coil for improved airflow and efficiency.
Heat Kit: HKTSN10X1
10 kW electric auxiliary heat kit adds powerful supplemental heating during cooler days.
Air Conditioner – GLXS3BN4810 Specifications
| Specification | Value |
|---|---|
| Cooling Capacity | 48,000 BTU/h |
| Tonnage | 4.0 Ton |
| SEER2 Rating | 13.4 |
| Compressor Type | Single-Stage Scroll |
| Refrigerant | R-410A |
| Voltage | 208–230V / 1Ph / 60Hz |
| RLA | 19.4 A |
| LRA | 127.7 A |
| Min Circuit Ampacity | 25.6 A |
| Max Overcurrent Protection | 45 A |
| Dimensions (H×W×D) | 39½" × 29" × 29" |
| Weight | 188 lbs |
| Sound Level | As low as 71 dBA |
Air Handler – AMST48CU13 Specifications
| Specification | Value |
|---|---|
| Nominal Capacity | 4.0 Ton (48,000 BTU/h) |
| Blower Motor Type | Multi-Speed ECM |
| Blower Motor HP | ¾ HP |
| Motor FLA | 5.7 A |
| Coil Type | All-Aluminum Evaporator |
| Expansion Device | Internal TXV (Factory Installed) |
| Refrigerant Type | R-410A / R-32 Compatible |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 7.1 A |
| Max Overcurrent Protection | 15 A |
| Dimensions (H×W×D) | 53⁷⁄₁₆" × 19¹³⁄₁₆" × 21⅛" |
| Weight | 153 lbs |
Heat Kit – HKTSN10X1 Specifications
| Specification | Value |
|---|---|
| Heating Capacity | 10.0 kW (9.6 kW @ 240V) |
| Voltage | 208/240V |
| Heater Amps (208V/240V) | 34.7 / 40.0 A |
| Min Circuit Ampacity | 50.5 / 57 A |
| Max Overcurrent Protection | 60 / 60 A |
System Performance & Benefits
- Efficient Cooling: 13.4 SEER2 performance reduces operating costs while maintaining comfortable temperatures.
- Powerful Capacity: 4.0-ton system provides robust cooling for large residential spaces and demanding applications.
- Quiet Operation: Scroll compressor technology delivers smooth operation at 71 dBA.
- Multi-Speed ECM Blower: Adjustable airflow for optimal comfort and energy efficiency across multiple speed taps.
- Durable Construction: All-aluminum evaporator coil provides long-lasting performance and corrosion resistance.
- Factory-Installed TXV: Internal thermal expansion valve ensures optimal refrigerant metering for maximum efficiency.
- Maximum Heating: 10 kW electric heat kit provides powerful supplemental heating for colder climates.
- Multi-Position Installation: Air handler can be installed horizontally or vertically for flexible installation options.
Professional Installation Recommended
This complete HVAC system is best installed by certified technicians to ensure optimal performance, proper commissioning, and warranty compliance.
Important Regional Efficiency Notice: This 13.4 SEER2 system meets DOE efficiency standards for all U.S. regions but should always be verified for compliance with local and state codes. Installation in accordance with manufacturer and regulatory guidelines ensures proper operation and eligibility for warranty protection.
