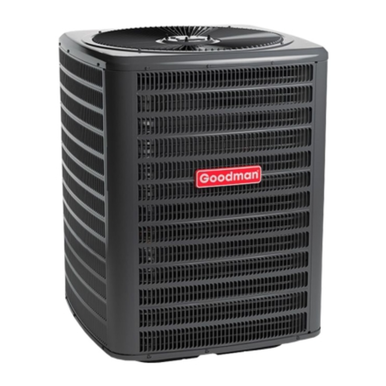

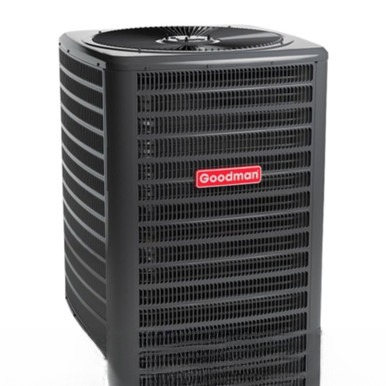

Goodman GLXS3BN4810 4 Ton R-32 Air Conditioner
The Goodman GLXS3BN4810 is a 4-ton R-32 air conditioner condenser from the Classic series, delivering 13.4 SEER2 cooling efficiency. Featuring a Scroll compressor and environmentally-friendly R-32 refrigerant, this unit provides reliable cooling performance with improved efficiency for residential comfort applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS3BN4810 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 4 Ton |
| Cooling Capacity | 48,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 84 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 25.6 A |
| Max Overcurrent Protection | 45 A |
| Sound Level | 71.0 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1⅛" |
| Dimensions (W×D×H) | 29" × 29" × 39.5" |
| Shipping Weight | 188 lbs |
Comprehensive Warranty Protection
10
Year Parts Warranty
10
Year Compressor Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant for Northern Regions
This complete R-32 system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Goodman's standard 10 year parts warranty when registered online through the manufacturer.
