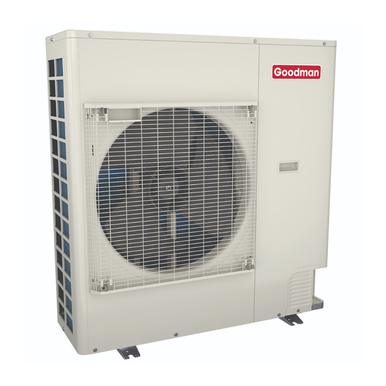

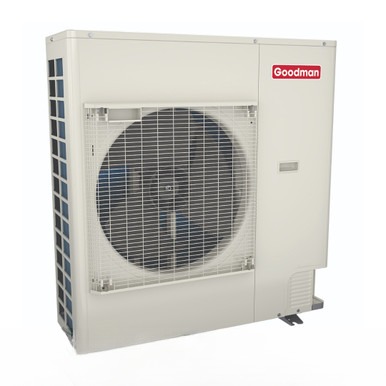

GOODMAN GZV7SA6010 - 5.0 Ton 17.5 SEER2 Variable-Speed Heat Pump
brand: Goodman
- SKU:
- GZV7SA6010
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN GZV7SA6010 - 5.0 Ton 17.5 SEER2 Variable-Speed Heat Pump
Flagship 5.0-ton variable-speed heat pump with R-32 refrigerant, dual condenser fans, and communicating diagnostics. Designed for larger homes needing efficient cooling and robust cold-weather heating.
Energy Efficiency
17.5 SEER2 performance in a 5-ton platform for cost-effective comfort.
Variable-Speed Inverter
Adapts output in real time for steady temperatures and better humidity control.
High Capacity Heating
Delivers up to 46,000 BTU/h of heat at 5°F outdoor temperature.
Heavy-Duty Build
Powder-coated steel cabinet with front-sealing service valves for longevity.
Technical Specifications
Factory-rated specifications for the GOODMAN GZV7SA6010.
| Specification | Value |
|---|---|
| Cooling Capacity (95°F) | 52,000 BTU/h |
| Heating Capacity (47°F) | 54,000 BTU/h |
| Heating Capacity (5°F) | 46,000 BTU/h |
| Tonnage | 5.0 Ton |
| SEER2 Rating | 17.5 |
| Compressor / Fans | Variable-Speed Swing / Dual condenser fans |
| Refrigerant | R-32 |
| Factory Charge | 162 oz |
| Subcooling at Service Valve | 11 ± 1°F |
| Voltage / Phase / Hertz | 208–230V / 1Ph / 60Hz |
| Fan/Compressor Inverter Input | 24.5 A |
| Minimum Circuit Ampacity (MCA) | 34.4 A |
| Max Overcurrent Protection | 40 A |
| Electrical Conduit Size | ½" or ¾" |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 1⅛" |
| Liquid Valve Size (O.D.) | 3/8" |
| Suction Valve Size (O.D.) | 7/8" |
| Dimensions (W × D × H) | 37" × 12⅝" × 56 5/16" |
| Net / Shipping Weight | 236 lbs / 271 lbs |
Performance & Reliability
Built for bigger loads, the GZV7SA6010 delivers strong cooling and cold-climate heating with a durable, serviceable design. R-32 refrigerant and an EEV metering device support efficient, consistent operation.
Key Benefits:
- Large-Home Ready: 5-ton capacity with high 47°F/5°F heating outputs.
- Comfort You Can Hear: Inverter modulation helps avoid noisy on/off cycling.
- Lower-GWP Refrigerant: Uses R-32 for a reduced environmental footprint.
- Pro-Grade Details: Clearly specified line/valve sizes and conduit options.
Professional Installation Required
Licensed HVAC installation is required to ensure warranty coverage, safety, and peak performance.
