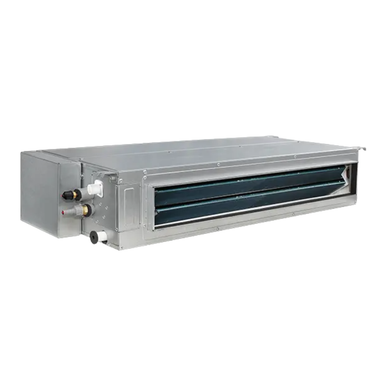

GREE Vireo Gen3 12,000 BTU Slim Duct Concealed Indoor Unit - DUCT12HP230V1BD
brand: Gree
- SKU:
- DUCT12HP230V1BD
- Shipping:
- Free Shipping
GREE Vireo Gen3 12,000 BTU Slim Duct Concealed Indoor Unit - DUCT12HP230V1BD
The GREE Vireo Gen3 DUCT12HP230V1BD is a 12,000 BTU/h slim duct concealed indoor unit for ductless heat pump systems. At just 11-7/8" tall, it fits inside ceiling cavities and soffits where conventional air handlers cannot. DC inverter compatible with adjustable external static pressure, built-in condensate drain pump, and flexible return air from bottom or rear. Ships with both wireless and wired remote controls.
Indoor Unit Only
This is a concealed slim duct indoor unit. It requires a compatible GREE outdoor condenser (sold separately) such as a Vireo single-zone or MULTI multi-zone unit. Refrigerant line set and ductwork also required.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | GREE |
| Model Number | DUCT12HP230V1BD |
| Series | Vireo Gen3 |
| Product Type | Slim Duct Concealed Indoor Unit |
| System Type | Heat Pump (Cooling + Heating) |
| Nominal Capacity | 12,000 BTU/h |
| Cooling Range (Min-Max) | 900 - 14,100 BTU/h |
| Rated Heating Capacity @ 47°F | 12,000 BTU/h |
| Heating Capacity @ 17°F | 6,900 BTU/h |
| Heating Range (Min-Max) | 900 - 15,500 BTU/h |
| SEER / EER | 20.5 / 11.8 |
| HSPF / COP | 10.6 / 3.78 |
| Refrigerant | R-410A |
| Voltage / Phase / Hz | 208-230V / 1-Ph / 60Hz |
| Cooling Temp Range | -20°F to 122°F |
| Heating Temp Range | -22°F to 86°F |
| Indoor Unit Height | 11-7/8" |
| Condensate Drain Pump | Built-in |
| Return Air | Bottom or Rear |
| Remote Controls | Wireless (YT1F) + Wired (XK76) |
| Coil Protection | Blue Fin (500 hrs salt spray tested) |
Warranty Coverage
Note: Residential applications only. Warranty terms and conditions apply.
Professional Installation Required
Concealed duct systems require certified HVAC technician installation including ductwork fabrication, refrigerant line set connection, electrical wiring, and vacuum/charge procedures.
Indoor Unit Only — Outdoor Condenser Required
This indoor unit requires a compatible GREE outdoor condenser, refrigerant line set, and ductwork to complete the system. Verify compatibility before purchasing.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
