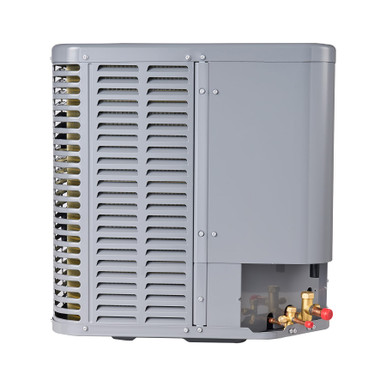

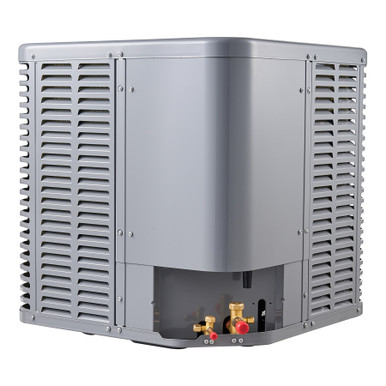

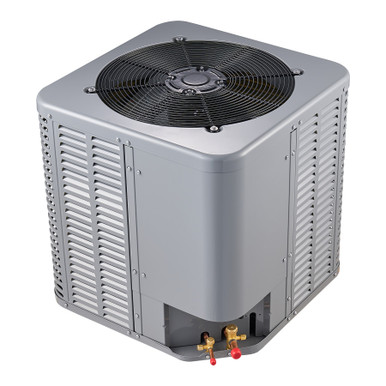

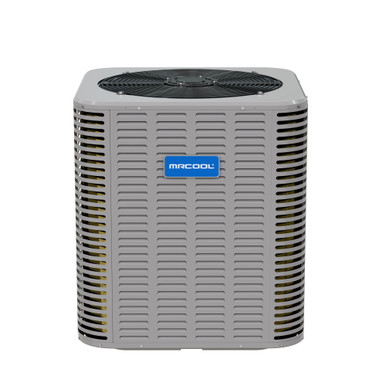

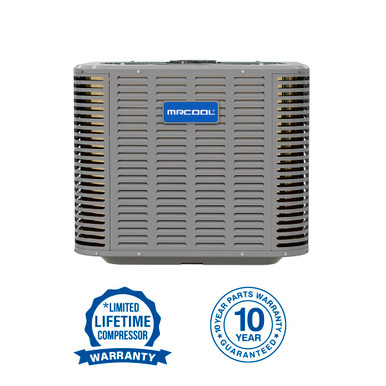

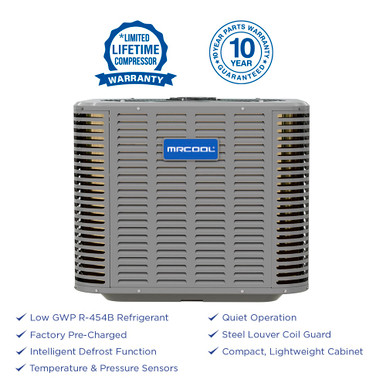

MRCOOL 4 Ton 14.3 SEER2 Heat Pump Condenser - MCAESHS4T4821AA
The MRCOOL® Signature Series 48k Heat Pump Condenser is a high-capacity, all-season system built to deliver powerful and efficient heating and cooling year-round. With a 14.3 SEER2 and 11.2 EER2 rating, it ensures consistent indoor comfort while helping reduce energy costs. This model comes pre-charged with R-454B refrigerant, a modern, low-GWP alternative that complies with current environmental standards. It offers reliable performance with a smaller environmental footprint. The factory charge also speeds up installation, reducing labor time for contractors and minimizing hassle for homeowners. A heavy-duty single-speed scroll compressor sits at the heart of the system, designed to provide steady operation across a wide range of conditions. Inner-groove copper tubing improves heat exchange, boosting system efficiency. Integrated temperature and pressure sensors protect against stress from extreme temperatures, while an intelligent defrost function prevents ice buildup during colder weather. Despite its large output, the unit operates at a quiet 65 decibels, comparable to a typical dishwasher. A specially designed sound-control top helps reduce operating noise without affecting airflow, making it a good fit for residential areas. Built for long-term durability, the unit features a steel louver coil guard and wire fan discharge grille to protect internal components from debris and damage. With compact design, accessible service valves, and a 10-year limited parts warranty and a limited lifetime warranty, the MRCOOL® Signature Series 48k Heat Pump Compressor is a smart investment in year-round comfort and reliability.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | MCAESHS4T4821AA |
| Product Type | Heat Pump Condenser |
| Series | Signature Series Heat Pump Condenser |
| Tonnage | 4 |
| Cooling Capacity | 45,000 BTU |
| Heating Capacity | 45,000 BTU |
| SEER2 | 14.3 |
| EER2 | 11.2 |
| HSPF2 | 7.5 |
| Refrigerant | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | Grey |
| Unit Dimensions | 32.875"H x 29.14"W x 29.14"D |
| Shipping Weight | 232 lb |
| Parts Warranty | 10 Year |
| Compressor Warranty | Limited Lifetime |
| Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Coverage
10 Year Parts, Limited Lifetime Compressor Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
