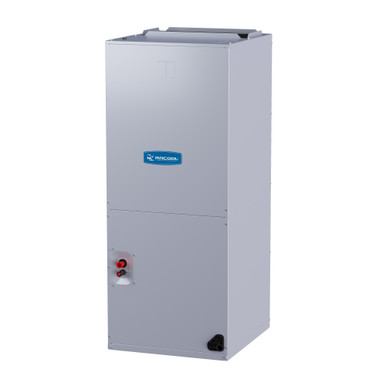

MRCOOL Air Handler - HAH018FPA
Improve your HVAC system with the 1.5 Ton PRODIRECT™ Series PSC Air Handler, a dependable upgrade for any home. With a SEER2 rating of 15.2, this model offers excellent energy efficiency. Built with all-aluminum tubes and fins, it provides long-lasting durability and corrosion resistance for dependable performance. Compatible with both cooling and heat pump systems, it’s designed to meet the varying needs of different home setups. The 18K PRODIRECT™ Series PSC Air Handler features a factory-sealed cabinet that limits air leakage to 2% or less at 1.0 inch water column pressure, further optimizing energy consumption. Its flexible design supports multi-positional installation, allowing it to fit in a variety of spaces and includes both horizontal and vertical condensate drain pans for easier installation. Maintenance is made simple with slide-out blower and coil components. Additionally, you can customize the heating capacity with optional heat kits ranging from 5 to 20 kW, allowing you to achieve the perfect comfort level for your home. Certified by AHRI and listed by ETL, the 1.5 Ton PRODIRECT™ Series PSC Air Handler meets the highest industry standards and is backed by MRCOOL® with a standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration. Choose the PRODIRECT™ Series for an efficient, dependable air handler that ensures long-lasting comfort in your home.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | HAH018FPA |
| Product Type | Air Handler |
| Series | PRODIRECT Series PSC Air Handler |
| Cooling Capacity | 18,000 BTU |
| Refrigerant | R-410A |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | Silver |
| Unit Dimensions | 41.375"H x 18.125"W x 20.5"D |
| Shipping Weight | 118 lb |
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
