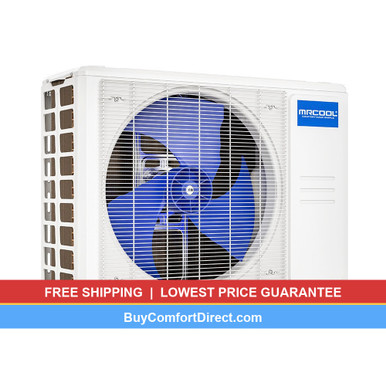

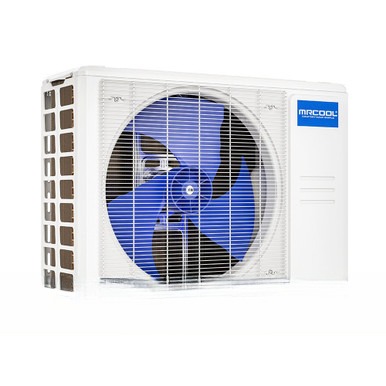

MRCOOL 23,000 BTU 22.7 SEER2 DIY Mini Split System - DIY-24-HP-WM-230D25-O
Taking on an HVAC installation yourself might seem daunting, but the 5th Generation MRCOOL® DIY® 24K BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split System is built specifically for easy, do-it-yourself setup. With no special tools or professional experience needed, this system is perfect for heating and cooling areas between 750-1,000 sq. ft. The pre-charged 25-foot QuickConnect® line set simplifies installation by eliminating the need for vacuuming, while the included DIYPRO® cable adds extra durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork hazards. With multiple control options, managing your comfort is effortless. Adjust settings using the included remote, the SmartHVAC app on Apple or Android devices, or go hands-free with voice control via Amazon Alexa and Google Assistant. For homes near the coast, the Gold Fin System enhances corrosion resistance, ensuring lasting performance. This system is packed with features to maximize efficiency and convenience. The Timer function helps regulate energy use, while Auto mode maintains your preferred temperature with no extra effort. If power is lost, the unit automatically restores previous settings. Plus, the anti-mildew function helps prevent moisture buildup inside the air handler. Engineered for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty that allows for eligibility for the MRCOOL® Care Program and a base warranty of 7-year compressor/5-year parts. Combining user-friendly installation with advanced technology, this system delivers lasting comfort with ease.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | DIY-24-HP-C-230D25-O |

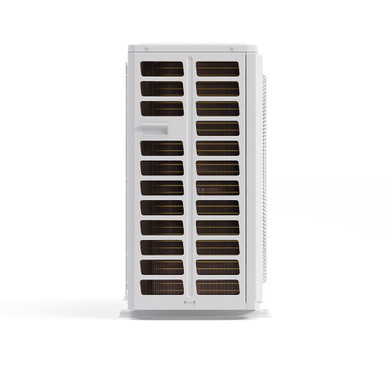

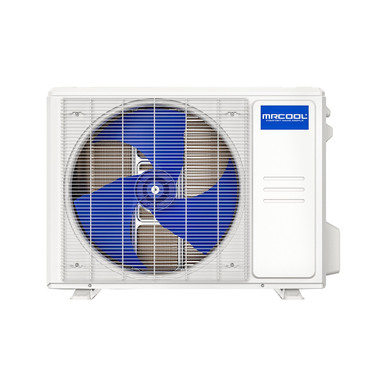

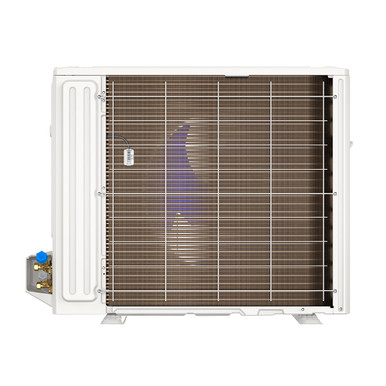

| Product Type | Heat Pump Condenser |
| Series | DIY 5th gen Single-Zone Mini-splits |
| Tonnage | 2 |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| SEER2 | 22.7 |
| EER2 | 12.7 |
| Refrigerant | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | White |
| Unit Dimensions | 31.89"H x 37.24"W x 16.14"D |
| Shipping Weight | 155.65 lb |
| Parts Warranty | 5 |
| Compressor Warranty | 7 |
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | DIY-24-HP-WMAH-230D25-O |

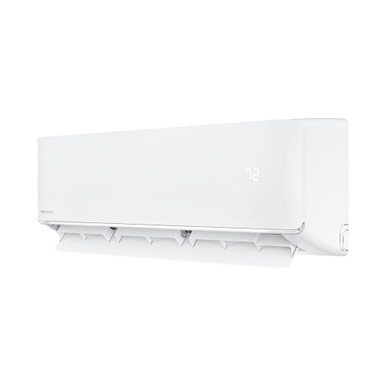

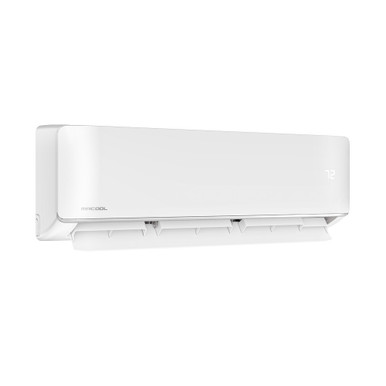

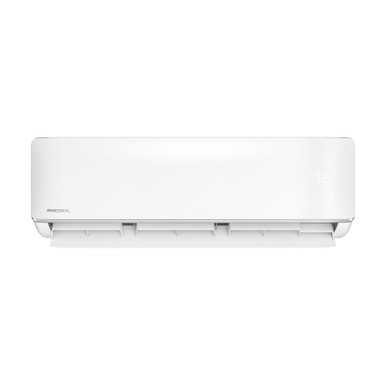

| Product Type | Wall Mount Air Handler |
| Series | DIY 5th gen Single-Zone Mini-splits |
| Tonnage | 2 |
| Max Coverage Area | 1050 sqft |
| Voltage | 208/230 V |
| Phase | 1 |
| Mount Type | Wall |
| Color | White |
| Unit Dimensions | 13.19"H x 42.52"W x 8.9"D |
| Shipping Weight | 49.82 lb |
| Parts Warranty | 5 |
| Compressor Warranty | 7 |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Coverage
5
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
