MRCOOL Air Handler
$1,386.53
-
4.9 out of 5 from verified customer reviews Read reviews →Product Details
- Model Number
- HAH048FPA
- Brand
- MRCOOL
- Condition
- New
Description
The HAH048FPA — MRCOOL Air Handler – HAH048FPA — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the HAH048FPA

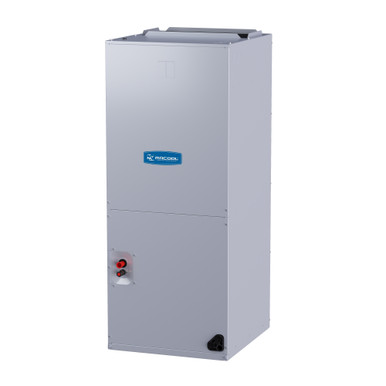

MRCOOL Air Handler – HAH048FPA
The 4 Ton PRODIRECT™ Series PSC Air Handler is designed to enhance your home’s HVAC system with dependable, efficient performance. Compatible with cooling and heat pump applications, this air handler offers flexibility to suit various installation needs. With an impressive SEER2 rating of 15.2, it delivers energy-efficient operation that can help reduce your utility costs. This unit features corrosion-resistant all-aluminum tubes and fins, ensuring durability and longevity. The factory-sealed cabinet minimizes air leakage to 2% or less at 1.0-inch water column pressure, maintaining system efficiency. Its flexible design supports multi-positional installation, allowing it to fit in a variety of spaces and includes both horizontal and vertical condensate drain pans for easier installation. The 48K PRODIRECT™ Air Handler simplifies maintenance with easy access to the slide-out blower and coil components. For added heating capabilities, it accommodates optional heat kits ranging from 5 to 20 kW to meet your specific needs. Certified by AHRI and ETL-listed, this air handler meets high industry standards for performance and safety. MRCOOL® backs this unit with a standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration. Reliable, adaptable, and built for year-round comfort, the 4 Ton PRODIRECT™ Series PSC Air Handler is an excellent solution for your HVAC needs.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | HAH048FPA |
| Product Type | Air Handler |
| Series | PRODIRECT Series PSC Air Handler |
| Cooling Capacity | 48,000 BTU |
| Refrigerant | R-410A |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | Silver |
| Unit Dimensions | 54.5″H x 22″W x 24″D |
| Shipping Weight | 174 lb |
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
HAH048FPA: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our Condensers or the MRCOOL catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
HAH048FPA FAQ
Does the HAH048FPA ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 174.00 lbs |
|---|---|
| Dimensions | 0.00 × 0.00 × 0.00 in |
| System Type | Mini Split |
| Brand | MRCOOL |
| Refrigerant | R-410A |
| Voltage | 208/230V |
