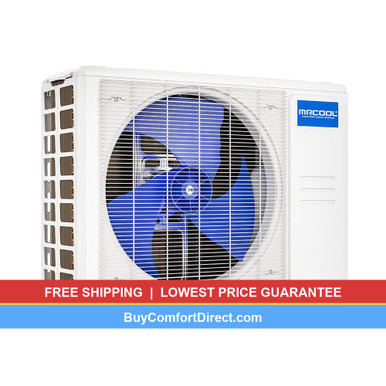

MRCOOL 36,000 BTU 18 SEER2 DIY Mini Split System - DIY-36-HP-WM-230D25-O
The 5th Generation MRCOOL® DIY® 36k BTU 18 SEER Ductless Heat Pump Single Zone Mini Split System makes it easy to stay comfortable year-round. Designed for straightforward installation, this system requires no special tools or professional expertise, making it a great choice for spaces between 1,000-1,500 sq. ft. Installation is hassle-free thanks to the pre-charged 25-foot QuickConnect® line set, which comes filled with R-454B refrigerant, eliminating the need for vacuuming. The DIYPRO® cable adds extra durability, replacing traditional electrical conduit to safeguard against weather, animals, and yardwork damage. Multiple control options let you adjust settings with ease. Use the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. If you live near the coast, the Gold Fin System offers excellent corrosion resistance, ensuring long-lasting performance. This system includes features that enhance both comfort and efficiency. The Timer function helps manage energy use, while Auto mode keeps your space at your preferred temperature without manual adjustments. After a power outage, the system automatically restores its previous settings. Designed for reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with eligibility for the MRCOOL® Care Program, along with industry-leading coverage through a 7-year compressor and 5-year parts warranty. With innovative technology, easy setup, and long-term dependability, this system delivers efficient climate control without the stress.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | DIY-36-HP-C-230D25-O |

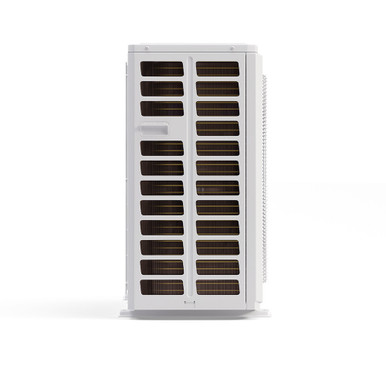

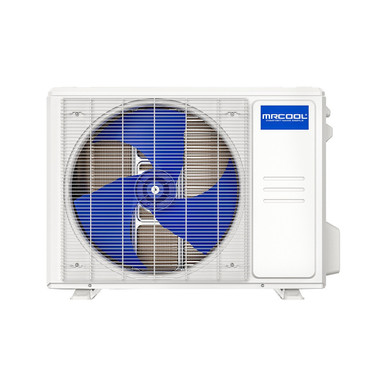

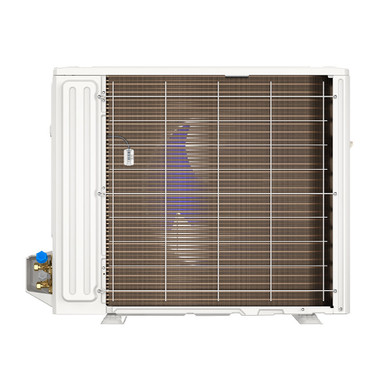

| Product Type | Heat Pump Condenser |
| Series | DIY 5th gen Single-Zone Mini-splits |
| Tonnage | 3 |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| SEER2 | 18 |
| EER2 | 8.5 |
| Refrigerant | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | White |
| Unit Dimensions | 31.89"H x 37.24"W x 16.14"D |
| Shipping Weight | 183.42 lb |
| Parts Warranty | 5 |
| Compressor Warranty | 7 |
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | DIY-36-HP-WMAH-230D25-O |
| Product Type | Wall Mount Air Handler |
| Series | DIY 5th gen Single-Zone Mini-splits |
| Tonnage | 3 |
| Max Coverage Area | 1550 sqft |
| Voltage | 208/230 V |
| Phase | 1 |
| Mount Type | Wall |
| Color | White |
| Unit Dimensions | 14.25"H x 49.57"W x 11.1"D |
| Shipping Weight | 67.9 lb |
| Parts Warranty | 5 |
| Compressor Warranty | 7 |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Coverage
5
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
