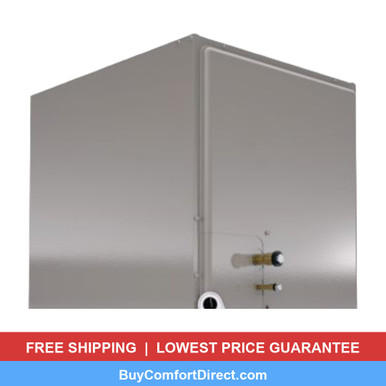

RHEEM RCFY2414STAAMC – 2.0 Ton 14″ Cased Evaporator Coil
Original price was: $780.00.$406.70Current price is: $406.70.
-
Product Details
- Model Number
- RCFY2414STAAMC
- Brand
- Rheem
- Condition
- New
Description
RHEEM RCFY2414STAAMC – 2.0 Ton 14″ Cased Evaporator Coil
High-efficiency cased evaporator coil featuring aluminum construction with R-454B refrigerant compatibility for superior comfort control and energy savings. Designed for residential applications with TXV metering and multi-position installation capability.
Advanced Coil Design
N-Coil design with aluminum fins bonded to internally grooved aluminum tubing maximizes performance and minimizes installation height.
R-454B Compatible
Factory refrigerant leak tested coil compatible with eco-friendly R-454B refrigerant for reduced environmental impact.
Multi-Position Design
Bi-directional airflow capability with 4-way installation options for upflow, downflow, or horizontal configurations.
Professional Features
AHRI certified for system applications with PlusOne Refrigerant Detection System compatibility and UV resistant construction.
Technical Specifications
Complete specifications for the RHEEM RCFY2414STAAMC evaporator coil, including performance ratings, airflow characteristics, and physical dimensions.
| Specification | Value |
|---|---|
| Capacity | 24,000 BTU/HR |
| Tonnage | 2.0 Ton |
| Series | RCFY |
| Cabinet Width | 14″ |
| Dimensions (W x B x C) | 14″ x 20 1/16″ x 23 3/16″ |
| Coil Weight | 45 lbs |
| Shipping Weight | 49 lbs |
| Coil Type | Aluminum fins bonded to aluminum tubing |
| Metering Device | TXV |
| Refrigerant | R-454B |
| Airflow Range | 525-900 CFM |
| Face Area | 4.56 sq ft |
| Fins Per Inch | 16/2 |
| Liquid Connection | 3/8″ |
| Suction Connection | 3/4″ |
| Drain Connections | Two sets of 3/4″ NPT |
| Position | Multi-Position |
Advanced Features & Performance
The RHEEM RCFY2414STAAMC delivers exceptional performance with advanced coil design and premium construction features.
Key Benefits:
- Advanced Construction: Aluminum fins bonded to internally grooved aluminum tubing for superior heat transfer.
- Factory Tested: Extensive refrigerant leak testing ensures reliable performance and system integrity.
- Professional Connections: Copper sweat refrigerant connections with Chatleff metering device connections.
- Flexible Installation: Multi-position capability with bi-directional airflow for installation versatility.
- Drain Management: Two sets of 3/4″ NPT condensate drain connections for reliable moisture removal.
- Durable Construction: High grade thermal-set drain pan material for long-lasting performance.
- UV Resistant: Compatible with Germicidal Light Systems for enhanced indoor air quality.
- AHRI Certified: Certified for system applications with variety of Rheem outdoor units.
Professional Installation Required
This high-efficiency evaporator coil requires professional installation by certified HVAC technicians for optimal performance and warranty compliance.
Additional information
| Weight | 60.00 lbs |
|---|---|
| Dimensions | 30.00 × 14.00 × 34.00 in |
| System Type | Evaporator Coil |
| Brand | Rheem |
| Tonnage | 2 Ton |
| Refrigerant | R-454B |
| Cabinet Width | 14" |
Related products
-
Goodman 3 Ton Evaporator Coil – CHPTA3630B3
NewFree Shipping$909.00-
Add to cart -
Goodman 2.0 Ton Evaporator Coil – Upflow – CAPTA2422B3
NewFree Shipping$777.00-
Add to cart -
Sale!
RHEEM RCFY6024STANMC – 5.0 Ton 24.5″ Cased Evaporator Coil
NewFree ShippingOriginal price was: $1,440.00.$751.59Current price is: $751.59.-
Add to cart -

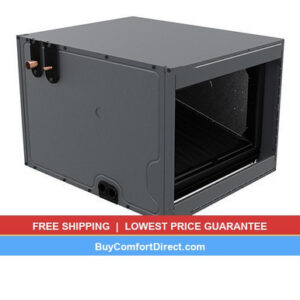

Goodman 4 Ton Evaporator Coil – CHPTA4830C3
