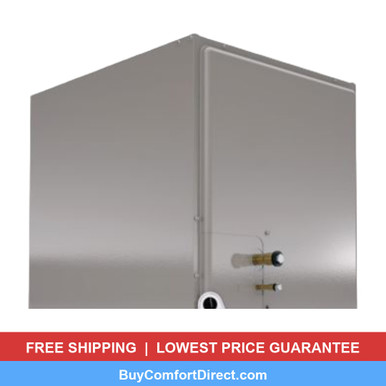

RHEEM RCFY6024STANMC - 5.0 Ton 24.5" Cased Evaporator Coil


$1,800.00 $1,152.00
(You save $648.00)

brand:

SKU:
RCFY6024STANMC
Condition:
New
Shipping:
Free Shipping


RHEEM RCFY6024STANMC - 5.0 Ton 24.5" Cased Evaporator Coil

RHEEM RCFY6024STANMC - 5.0 Ton 24.5" Cased Evaporator Coil

High-efficiency cased evaporator coil featuring aluminum construction with R-454B refrigerant compatibility for superior comfort control and energy savings. Designed for residential applications with TXV metering and multi-position installation capability.

Advanced Coil Design

N-Coil design with aluminum fins bonded to internally grooved aluminum tubing maximizes performance and minimizes installation height.

R-454B Compatible

Factory refrigerant leak tested coil compatible with eco-friendly R-454B refrigerant for reduced environmental impact.

Multi-Position Design

Bi-directional airflow capability with 4-way installation options for upflow, downflow, or horizontal configurations.

Professional Features

AHRI certified for system applications with PlusOne Refrigerant Detection System compatibility and UV resistant construction.

Technical Specifications

Complete specifications for the RHEEM RCFY6024STANMC evaporator coil, including performance ratings, airflow characteristics, and physical dimensions.

Specification Value
Capacity60,000 BTU/HR
Tonnage5.0 Ton
SeriesRCFY
Cabinet Width24.5"
Dimensions (W x B x C)24.5" x 30 1/4" x 32 1/2"
Coil Weight100 lbs
Shipping Weight110 lbs
Coil TypeAluminum fins bonded to aluminum tubing
Metering DeviceTXV
RefrigerantR-454B
Airflow Range1400-1600 CFM
Face Area9.98 sq ft
Fins Per Inch13/3
Liquid Connection3/8"
Suction Connection7/8"
Drain ConnectionsTwo sets of 3/4" NPT
PositionMulti-Position

Advanced Features & Performance

The RHEEM RCFY6024STANMC delivers exceptional performance with advanced coil design and premium construction features.

Key Benefits:

  • Advanced Construction: Aluminum fins bonded to internally grooved aluminum tubing for superior heat transfer.
  • Factory Tested: Extensive refrigerant leak testing ensures reliable performance and system integrity.
  • Professional Connections: Copper sweat refrigerant connections with Chatleff metering device connections.
  • Flexible Installation: Multi-position capability with bi-directional airflow for installation versatility.
  • Drain Management: Two sets of 3/4" NPT condensate drain connections for reliable moisture removal.
  • Durable Construction: High grade thermal-set drain pan material for long-lasting performance.
  • UV Resistant: Compatible with Germicidal Light Systems for enhanced indoor air quality.
  • AHRI Certified: Certified for system applications with variety of Rheem outdoor units.

Professional Installation Required

This high-efficiency evaporator coil requires professional installation by certified HVAC technicians for optimal performance and warranty compliance.
