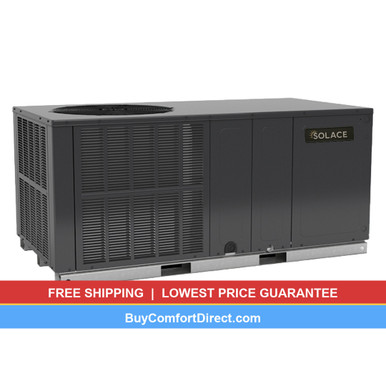

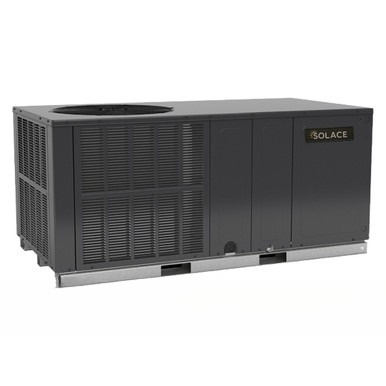

Solace 5 Ton 15.2 SEER2 Packaged Air Conditioner - S-GPHM56031
brand: Solace
- SKU:
- S-GPHM56031
- Condition:
- New
- Shipping:
- Free Shipping
Solace 5 Ton 15.2 SEER2 Packaged Air Conditioner - S-GPHM56031
The Solace S-GPHM56031 is an all-in-one 5 ton packaged air conditioner rated at 15.2 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets modern DOE efficiency requirements across U.S. climate zones. Compatible with optional electric heat kits for auxiliary heating needs (sold separately).
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GPHM56031 |
| Product Type | Package Heat Pump |
| Tonnage | 5 Ton |
| SEER2 Rating | 15.2 |
| EER2 Rating | 11.6 |
| Refrigerant Type | R-32 |
| Cooling Capacity (BTU/h) | 58000 BTU/h |
| Sensible Capacity (BTU/h) | 45000 BTU/h |
| Airflow (CFM) | 1950 CFM |
| Blower Motor | ECM (1 HP) |
| Compressor Type | Scroll |
| Factory Charge (oz) | 185 oz |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 39.0 A |
| Max Overcurrent Protection | 60 A |
| Sound Level (dBA) | 78 dBA |
| Cabinet Size | X-Large |
| Duct Opening - Supply | 17" x 12" |
| Duct Opening - Return | 11" x 25" |
| Dimensions (H×W×D) | 73⅜" x 47⅝" x 39" |
| Shipping Weight | 688 lbs |
| Operating Weight | 688 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
