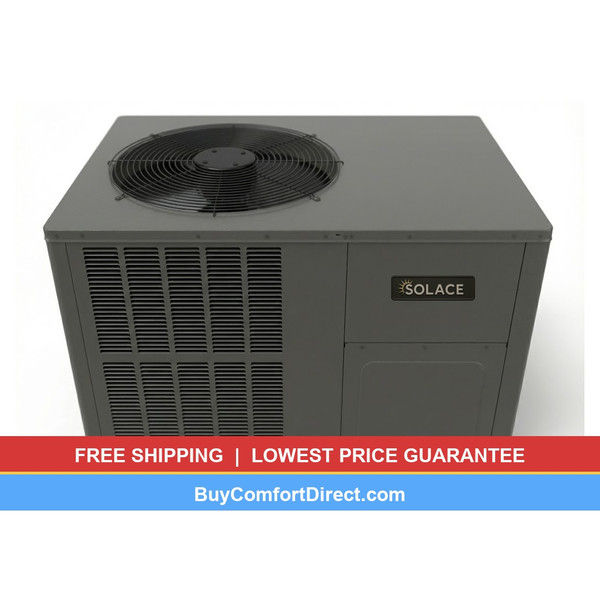

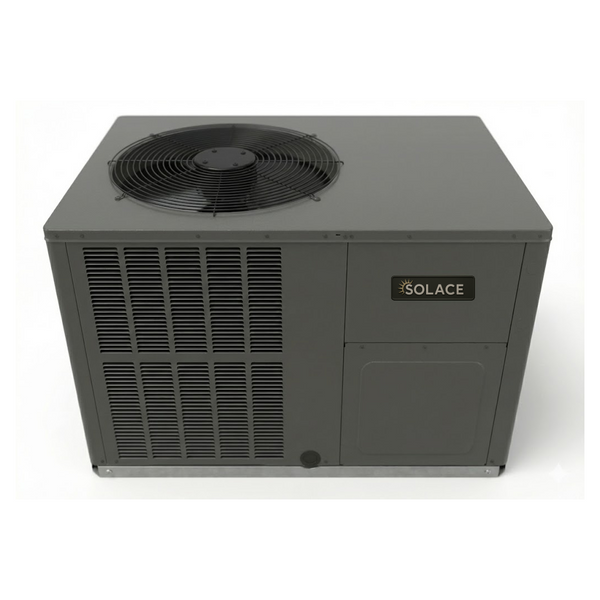

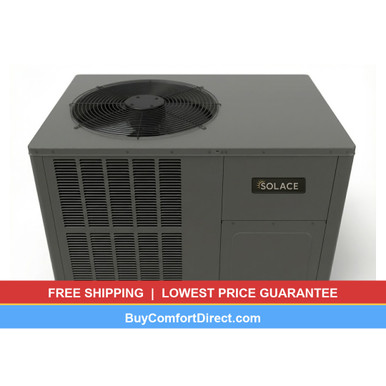

Solace 5 Ton 15.2 SEER2 Packaged Gas/Electric - S-GPGM56014031
The Solace S-GPGM56014031 is an all-in-one 5 ton packaged gas/electric rated at 15.2 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets modern DOE efficiency requirements across U.S. climate zones.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GPGM56014031 |
| Product Type | Packaged Unit |
| Tonnage | 5 Ton |
| SEER2 Rating | 15.2 |
| EER2 Rating | 11.5 |
| Refrigerant Type | R-32 |
| Cooling Capacity (BTU/h) | 58000 BTU/h |
| Sensible Capacity (BTU/h) | 43660 BTU/h |
| Heating Input (BTU/h) | 135000 BTU/h |
| Heating Output (BTU/h) | 109350 BTU/h |
| AFUE | 81 |
| Burners | 6 |
| Temperature Rise Range (°F) | 35-65 °F |
| Airflow (CFM) | 1875 CFM |
| Blower Motor | 1 |
| Compressor Type | Scroll |
| Compressor Stages | 2 |
| Factory Charge (oz) | 100 oz |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 43.3 A |
| Max Overcurrent Protection | 70 A |
| Sound Level (dBA) | 78 dBA |
| Cabinet Size | None |
| Shipping Weight | 410 lbs |
| Operating Weight | 400 lbs |
Warranty Coverage
10
Year Parts Warranty
10
Year Compressor Warranty
∞
Lifetime Heat Exchanger
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
10-Year Limited Parts Warranty
