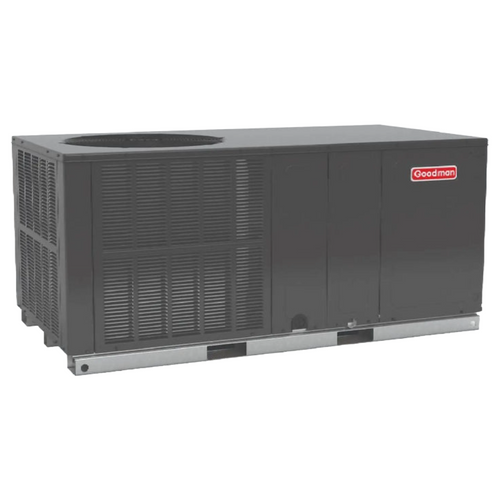

Solace 5 Ton 15.2 SEER2 Packaged Heat Pump – S-GPHH56031
$7,288.00
-
Product Details
- Model Number
- S-GPHH56031
- Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
Solace 5 Ton 15.2 SEER2 Packaged Heat Pump – S-GPHH56031
The Solace S-GPHH56031 is an all-in-one 5 ton packaged heat pump rated at 15.2 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets modern DOE efficiency requirements across U.S. climate zones. Compatible with optional electric heat kits for auxiliary heating needs (sold separately).
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GPHH56031 |
| Product Type | Packaged Unit |
| Tonnage | 5 Ton |
| SEER2 Rating | 15.2 |
| EER2 Rating | 11.2 |
| HSPF2 Rating | 6.8 |
| Refrigerant Type | R-32 |
| Cooling Capacity (BTU/h) | 55000 BTU/h |
| Sensible Capacity (BTU/h) | 39600 BTU/h |
| Heating Capacity @47°F (BTU/h) | 52000 BTU/h |
| Heating Capacity @17°F (BTU/h) | 31400 BTU/h |
| COP @47°F | 3.44 |
| COP @17°F | 2.28 |
| Airflow (CFM) | 1700 CFM |
| Blower Motor | ECM (0.75 HP) |
| Compressor Type | Scroll |
| Factory Charge (oz) | 140 oz |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 40.64 A |
| Max Overcurrent Protection | 60 A |
| Sound Level (dBA) | 80 dBA |
| Cabinet Size | Large |
| Duct Opening – Supply | 14.0″ x 14.0″ |
| Duct Opening – Return | 14.0″ x 24.0″ |
| Dimensions (H×W×D) | 38.5″ x 66.0″ x 34.0″ |
| Shipping Weight | 440 lbs |
| Operating Weight | 430 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | Package Unit |
| Brand | Solace |
| Tonnage | 5 Ton |
| SEER2 | 15.2 |
| HSPF2 | 6.8 |
| Refrigerant | R-32 |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
