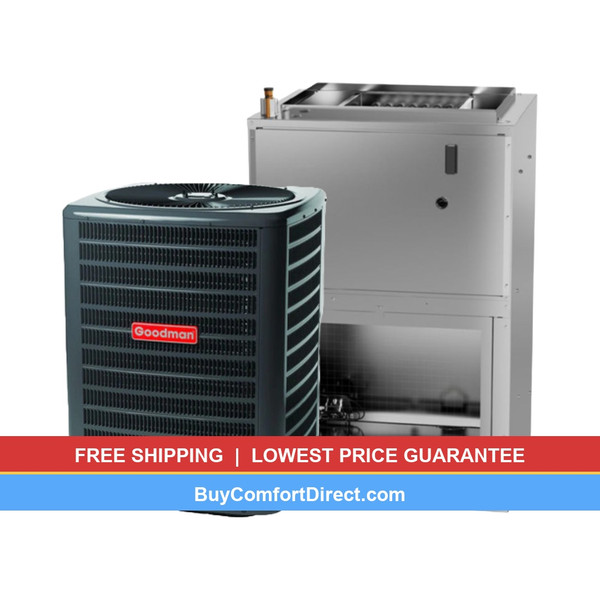

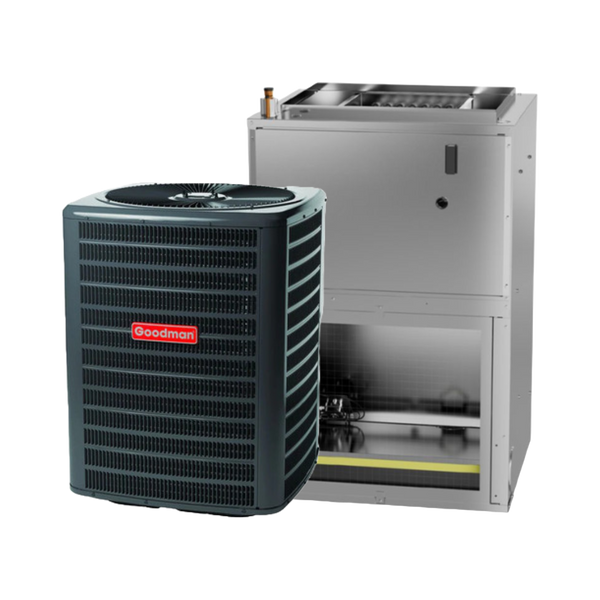

GOODMAN 1.5 Ton 13.4 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler
brand: Goodman
- SKU:
- GLXS3BN1810, AWST18SU1305
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 1.5 Ton 13.4 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler
Experience superior comfort cooling with this complete Goodman 1.5-ton air conditioning system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 13.4 SEER2 air conditioner with a wall-mounted air handler that includes a 5kW electric heat kit for reliable winter heating. Perfect for homes where floor space is limited, this system delivers efficient cooling and heating with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

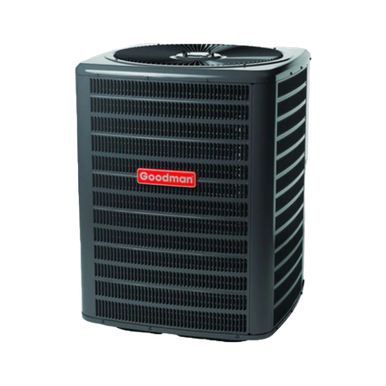

Air Conditioner — GLXS3BN1810 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS3BN1810 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 1.5 Ton |
| Cooling Capacity | 18,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 53 oz |
| Compressor Type | Rotary |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 10.9 A |
| Max Overcurrent Protection | 15 A |
| Sound Level | 73.0 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | ¾" |
| Dimensions (W×D×H) | 26" × 26" × 27.5" |
| Shipping Weight | 114 lbs |

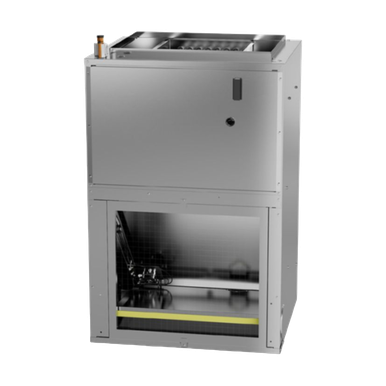

Wall-Hung Air Handler — AWST18SU1305A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | AWST18SU1305A |
| Product Type | Wall-Mounted Air Handler |
| Tonnage | 1.5 Ton |
| Refrigerant Type | R-32 Compatible |
| Blower Motor Type | ECM |
| Metering Device | TXV (Thermal Expansion Valve) |
| Mounting Type | Wall-Mounted |
| Integrated Electric Heat Kit | 5 kW (17,060 BTU/h) |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 20.0 A |
| Dimensions (W×D×H) | 35" × 10" × 28" |
| Shipping Weight | 45 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant for Northern Regions
This complete R-32 13.4 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
