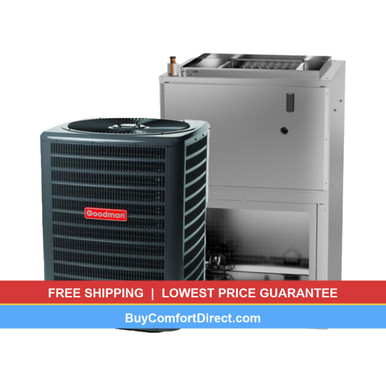

Goodman 2.5 Ton 14.3 SEER2 Heat Pump System with Air Handler – Wall-Mount – GLZS4BA3010
$4,047.00
Lower price in cart — extra Goodman savings apply automatically at checkout.
-
Product Details
- Model Numbers
- GLZS4BA3010
AWST30SU1310 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
GOODMAN 2.5 Ton 14.3 SEER2 R-32 Heat Pump System with Wall-Hung Air Handler AND 10kw Heat Kit
Experience superior year-round comfort with this complete Goodman 2.5-ton heat pump system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 14.3 SEER2 / 7.5 HSPF2 heat pump outdoor unit with a wall-mounted air handler that includes a 10kW backup electric heat kit for reliable supplemental heating. Perfect for homes where floor space is limited, this system delivers efficient heating and cooling with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

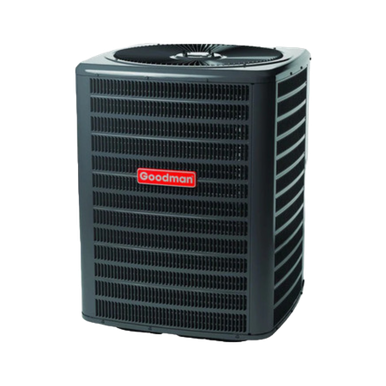

Heat Pump – GLZS4BA3010A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLZS4BA3010A |
| Tonnage | 2.5 Ton |
| Cooling Capacity (Nominal) | 30,000 BTU/h |
| Heating Capacity (Nominal) | 30,000 BTU/h |
| SEER2 Rating | 14.3 |
| HSPF2 Rating | 7.5 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 13.5 A |
| Compressor LRA | 67.5 A |
| Fan Motor Type | PSC (1/5 HP) |
| Fan Motor FLA | 1.40 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 18.7 A |
| Max Overcurrent Protection | 25 A |
| Sound Level | 75.0 dBA |
| Dimensions (H×W×D) | 35¼” × 35½” × 35½” |
| Weight | 195 lbs |
| Refrigerant Charge | 105 oz (Factory charged for 15′ line) |
| Liquid Line Size | ⅜” |
| Suction Line Size | ⅞” |

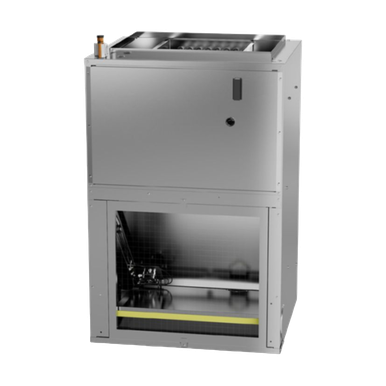

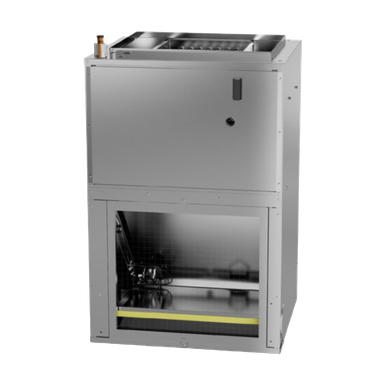

Wall-Hung Air Handler – AWST30LU1310A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | AWST30LU1310A |
| Tonnage | 2.5 Ton |
| Type | Wall-Hung Indoor Air Handler |
| Refrigerant | R-32 Compatible |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208–230V / 1Ph / 60Hz |
| Integrated Electric Heat Kit | 10 kW (34,121 BTU/h) |
| Heat Kit Voltage | 208–230V / 1Ph / 60Hz |
| Heat Kit Amperage | 43.5 A @ 230V |
| Heat Kit Stages | 3-Stage (4kW + 3kW + 3kW) |
| Metering Device | TXV (Thermal Expansion Valve) |
| Liquid Connection | ⅜” |
| Suction Connection | ⅞” |
| Dimensions (H×W×D) | 31″ × 29″ × 11″ |
| Weight | 85 lbs |
| Filter Type | Washable/Reusable |
| Mounting | Wall-Mount Bracket Included |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 heat pump meets Department of Energy minimum efficiency requirements for all U.S. climate zones
Additional information
| Weight | 245.00 lbs |
|---|---|
| Dimensions | 29.00 × 29.00 × 36.00 in |
| System Type | Heat Pump + Air Handler System |
| Brand | Goodman |
| Tonnage | 2.5 Ton |
| SEER2 | 14.3 |
| HSPF2 | 7.5 |
| Refrigerant | R-32 |
| Stages | Single Stage |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
