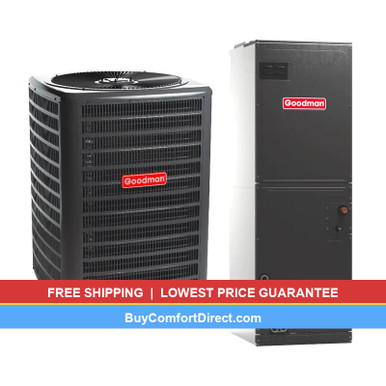

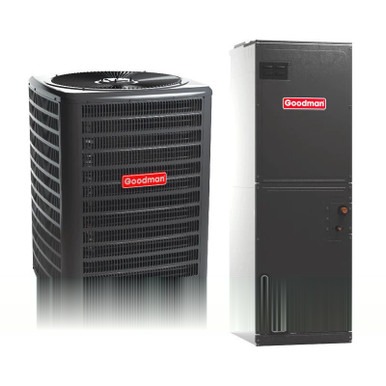

Goodman 2.5 Ton 15.2 SEER2 Heat Pump System with Air Handler – Multi-Position – GLZS5BA3010
$5,031.00
Lower price in cart — extra Goodman savings apply automatically at checkout.
-
Product Details
- Model Numbers
- GLZS5BA3010
AMST30BU13 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
GOODMAN 2.5 Ton 15.2 SEER2 R-32 Heat Pump System with Multi-Positional Air Handler
Experience year-round comfort with this premium Goodman 2.5-ton R-32 15.2 SEER2 heat pump system. This complete matched system combines a high-efficiency heat pump outdoor unit with a versatile multi-positional air handler. Designed for reliable heating and cooling performance, this system delivers exceptional energy efficiency, quiet operation, and dependable comfort with R-32 refrigerant.
Technical Specifications

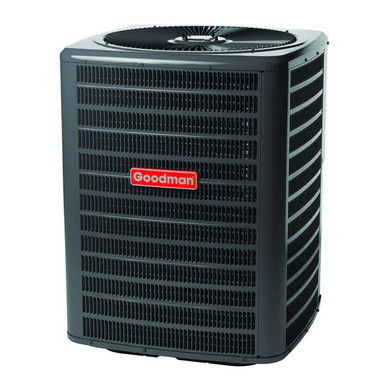

Heat Pump — GLZS5BA3010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 2.5 Ton |
| Refrigerant | R-32 |
| SKU/Model No | GLZS5BA3010 |
| Product Type | Split System Heat Pump |
| Cooling Capacity | 30,000 BTU/h |
| Heating Capacity (47°F) | 30,000 BTU/h |
| SEER2 Rating | Up to 15.2 |
| EER2 Rating | None |
| HSPF2 Rating | None |
| Compressor Type | Scroll |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 17.0 A |
| Max Overcurrent Protection | 25 A |
| Liquid Line Size | ⅜” |
| Suction Line Size | ¾” |
| Refrigerant Charge | 94 oz |
| Dimensions (H×W×D) | 39.5″ × 35″ × 35″ |
| Weight | 235 lbs |
| Sound Level | 73.0 dBA |
Air Handler — AMST30BU13 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 2.5 Ton |
| Refrigerant | R-32 Compatible |
| SKU/Model No | AMST30BU13 |
| Product Type | Multi-Positional Air Handler |
| Motor Type | Multi-Speed ECM |
| Motor HP | N/A HP |
| Nominal Cooling Capacity | 30,000 BTU/h |
| Airflow | None CFM |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 5.6/5.6 A |
| Max Overcurrent Device | 15/15 A |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ¾” |
| Metering Device | TXV (Internal) |
| Cabinet Configuration | Multi-Positional (B Cabinet) |
| Dimensions (H×W×D) | 53.4375″ × 16.3125″ × 17.5625″ |
| Weight | 129 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This complete R-32 15.2 SEER2 heat pump system meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 21.00 × 30.00 × 54.00 in |
| System Type | Heat Pump + Air Handler System |
| Brand | Goodman |
| Tonnage | 2.5 Ton |
| SEER2 | 15.2 |
| Refrigerant | R-32 |
| Airflow Direction | Multi-Position |
| Voltage | 208/230V |
