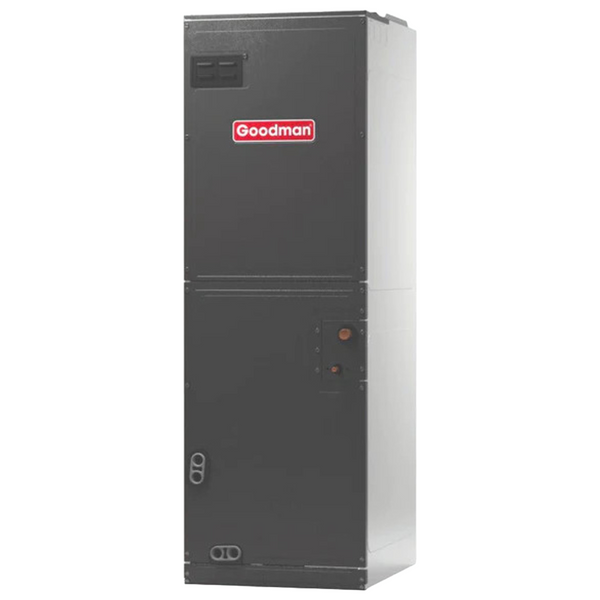

Goodman 3.0 Ton AMVT36CP1300 R-32 Multi-Position Variable-Speed Air Handler
brand: Goodman
- SKU:
- AMVT36CP1300
- Condition:
- New
- Shipping:
- Free Shipping
Goodman 3.0 Ton AMVT36CP1300 R-32 Multi-Position Variable-Speed Air Handler
Experience superior comfort and energy efficiency with the Goodman AMVT36CP1300 Variable-Speed ECM Air Handler. Engineered with advanced ComfortBridge technology and a high-efficiency variable-speed blower motor, this 3-ton air handler delivers whisper-quiet operation and precise temperature control for your home. The multi-position design offers flexible installation options, while the internal TXV ensures optimal refrigerant metering for consistent cooling performance.
Key Features & Benefits
Variable-Speed ECM Motor
¾ HP electronically commutated motor delivers superior efficiency, quieter operation, and enhanced humidity control compared to traditional single-speed blowers.
ComfortBridge Technology
Advanced communicating platform enables seamless integration with compatible HVAC equipment for optimized system performance and enhanced diagnostics.
Multi-Position Installation
Versatile cabinet design supports upflow, downflow, and horizontal installations, providing flexibility for any home configuration.
Internal TXV
Factory-installed thermostatic expansion valve ensures precise refrigerant flow control, maximizing cooling efficiency and system reliability.
All-Aluminum Evaporator Coil
Durable aluminum coil construction resists corrosion and provides excellent heat transfer for long-lasting performance.
Bluetooth Diagnostics
Built-in Bluetooth connectivity allows HVAC technicians to quickly access system data and troubleshoot issues via smartphone app.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | AMVT36CP1300 |
| Equipment Type | Multi-Position Variable-Speed Air Handler |
| Refrigerant Type | R-32 |
| Nominal Cooling Capacity | 36,000 BTU/h (3 Tons) |
| Blower Motor Type | Variable-Speed ECM (Electronically Commutated Motor) |
| Motor Horsepower | ¾ HP |
| Voltage | 208/240V, 1-Phase, 60 Hz |
| Maximum Operating Current (MOP) | 15 Amps |
| Minimum Circuit Ampacity (MCA) | 8.2 Amps |
| Installation Positions | Multi-Positional (Upflow, Downflow, Horizontal) |
| Expansion Valve | Internal TXV (Factory-Installed) |
| Evaporator Coil | All-Aluminum Construction |
| Cabinet Dimensions (H x W x D) | 53.5" x 21" x 21" |
| Approximate Weight | 130 lbs |
| Communication Technology | ComfortBridge (Communicating) |
| Diagnostics | Bluetooth-Enabled |
| Filter Size | 16" x 25" x 1" (Standard) |
System Compatibility
The AMVT36CP1300 is designed to work seamlessly with Goodman and Amana brand air conditioners and heat pumps with matching tonnage (3-ton systems). For optimal performance and warranty coverage, pair this air handler with:
- Goodman GSXC/GSZC Series Air Conditioners and Heat Pumps
- Amana ASXC/AVXC Series Air Conditioners and Heat Pumps
- ComfortBridge-compatible thermostats for advanced features
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
Variable-speed air handlers are compatible with systems rated 14.3 SEER2 and above, meeting DOE minimum efficiency requirements for all U.S. climate zones
