Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53631

Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump

Name: GPHH53631 – Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump - GPHH53631 | Free Shipping
Brand: Goodman
SKU: GPHH53631
Price: 5624.00 USD
Availability: InStock

Model: GPHH53631

See all Goodman 3 Ton Package Units →

Original price was: $5,835.00.Current price is: $5,624.00.

Condition: NewFree Shipping10-Year Limited Parts Warranty

Your price is LOWER in the cart

See my price in the cart →

In stock · ships from our Winder, GA warehouse

4.9 out of 5 from verified customer reviews Read reviews →

Recommended for this install Most installs also need these. Skip anything your installer is supplying; each ships with your order.

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Your system total: $5,624.00

ShippingShips from our warehouse in Winder, GA. This item ships by LTL freight truck. Please inspect the shipment and note any damage on the delivery receipt before signing. Free shipping on orders over $99. Shipping & returns

Rather talk to a person?

We will confirm the match for your home, quote it, and take your order by phone.

Call to Order: (877) 843-4822

Add to compare

Product Details

Model Number: GPHH53631
Brand: Goodman
Condition: New
Warranty: 10-Year Limited Parts Warranty

Shop more:3 Ton Package Units Package Units

Description

The GPHH53631 — Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump – GPHH53631 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.

About the GPHH53631

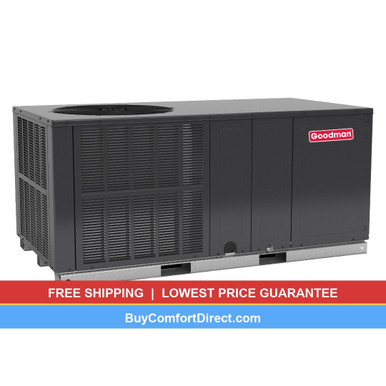

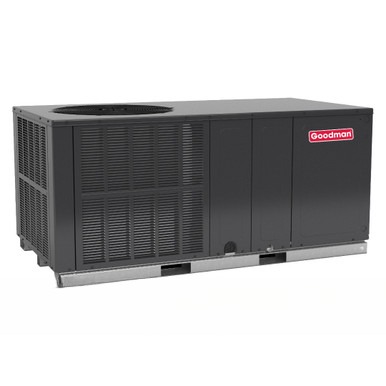

Goodman 3 Ton 15.2 SEER2 Packaged Heat Pump – GPHH53631

The Goodman GPHH53631 is an all-in-one 3 ton packaged heat pump rated at 15.2 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets modern DOE efficiency requirements across U.S. climate zones. Compatible with optional electric heat kits for auxiliary heating needs (sold separately).

Technical Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GPHH53631
Product Type	Packaged Unit
Tonnage	3 Ton
SEER2 Rating	15.2
EER2 Rating	11.2
HSPF2 Rating	7.0
Refrigerant Type	R-32
Cooling Capacity (BTU/h)	32600 BTU/h
Sensible Capacity (BTU/h)	26080 BTU/h
Heating Capacity @47°F (BTU/h)	30000 BTU/h
Heating Capacity @17°F (BTU/h)	18600 BTU/h
COP @47°F	3.42
COP @17°F	2.32
Airflow (CFM)	1180 CFM
Blower Motor	ECM (0.5 HP)
Compressor Type	Scroll
Factory Charge (oz)	144 oz
Voltage/Phase/Frequency	208-230V/1-Ph/60Hz
Min Circuit Ampacity	23.36 A
Max Overcurrent Protection	35 A
Sound Level (dBA)	78 dBA
Cabinet Size	Medium
Duct Opening – Supply	14.0″ x 14.0″
Duct Opening – Return	14.0″ x 24.0″
Dimensions (H×W×D)	35.0″ x 66.0″ x 34.0″
Shipping Weight	400 lbs
Operating Weight	390 lbs

Warranty Coverage

Year Parts Warranty

Year Compressor Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

GPHH53631: fitment and resources

Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR central air conditioner guide. Browse the rest of our 3 Ton Package Units or the Goodman catalog, and see what customers say on our reviews page.

Ordering and delivery

In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.

GPHH53631 FAQ

Does the GPHH53631 ship free?

Yes on orders over $99 — most orders that include it qualify.

How do I know it fits my system?

Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.

Additional information

Weight	350.00 lbs
Dimensions	48.00 × 48.00 × 60.00 in
System Type	Package Unit
Brand	Goodman
Tonnage	3 Ton
SEER2	15.2
HSPF2	7
Refrigerant	R-32
Blower Motor	Multi-Speed ECM
Voltage	208/230V
