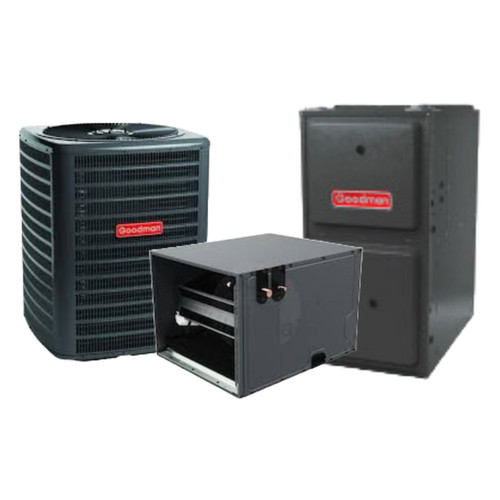

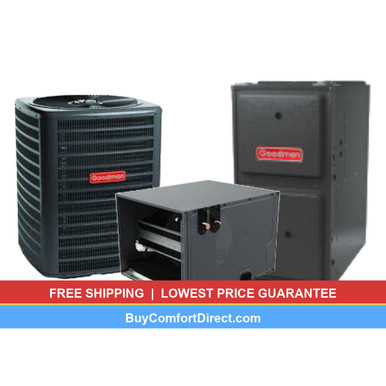

GOODMAN 4 Ton 13.4 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
brand: Goodman
- SKU:
- GLXS3BN4810, GR9S920804CNA, CHPTA4830C3
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 4 Ton 13.4 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
Experience reliable home comfort with this complete Goodman 4-ton R-32 HVAC system (Horizontal Coil). This matched system combines a high-efficiency 13.4 SEER2 air conditioner, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal "A" evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GLXS3BN4810 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS3BN4810 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 4 Ton |
| Cooling Capacity | 48,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 84 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 25.6 A |
| Max Overcurrent Protection | 45 A |
| Sound Level | 71.0 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1⅛" |
| Dimensions (W×D×H) | 29" × 29" × 39.5" |
| Shipping Weight | 188 lbs |
Gas Furnace — GR9S920804CN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GR9S920804CN |
| Product Type | Gas Furnace |
| BTU Input | 80,400 BTU/h |
| BTU Output | 73,968 BTU/h |
| AFUE | 92% |
| Heating Stages | 1 |
| Blower Motor Type | PSC |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0" × 29.0" × 33.0" |
| Shipping Weight | 160 lbs |

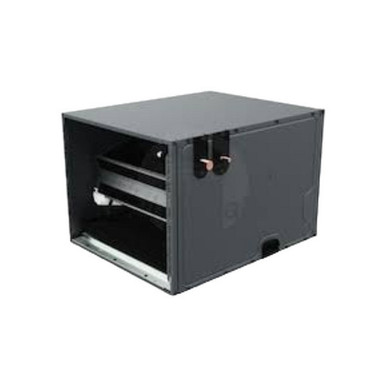

Evaporator Coil — CHPTA4830C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CHPTA4830C3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 4 Ton |
| Refrigerant Type | R-32 Compatible |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ¾" |
| Dimensions (W×D×H) | 26" × 26" × 20" |
| Shipping Weight | 50 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant for Northern Regions
This complete R-32 13.4 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
