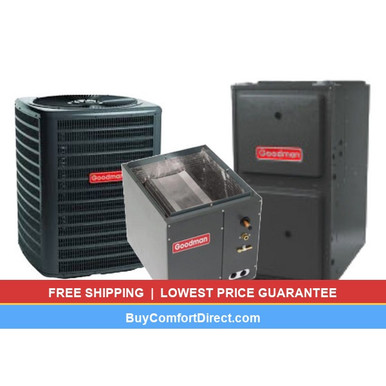

Goodman 4 Ton 15.2 SEER2 80,000 BTU 92% AFUE AC and Furnace System – Upflow – GLXS5BA4810
$6,679.00
-
Product Details
- Model Numbers
- GLXS5BA4810
GR9S920804CNA
CAPTA6030C3 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
GOODMAN 4 Ton 15.2 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Upflow Coil)
Experience reliable home comfort with this complete Goodman 4-ton R-32 HVAC system (Upflow Coil). This matched system combines a high-efficiency 15.2 SEER2 air conditioner, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GLXS5BA4810 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS5BA4810 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 4 Ton |
| Cooling Capacity | 48,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 138 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 25.5 A |
| Max Overcurrent Protection | 40 A |
| Sound Level | 75.0 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | 1⅛” |
| Dimensions (W×D×H) | 35″ × 35″ × 36.5″ |
| Shipping Weight | 249 lbs |
Gas Furnace — GR9S920804CN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GR9S920804CN |
| Product Type | Gas Furnace |
| BTU Input | 80,400 BTU/h |
| BTU Output | 73,968 BTU/h |
| AFUE | 92% |
| Heating Stages | Single Stage |
| Blower Motor Type | PSC |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0″ × 29.0″ × 33.0″ |
| Shipping Weight | 160 lbs |

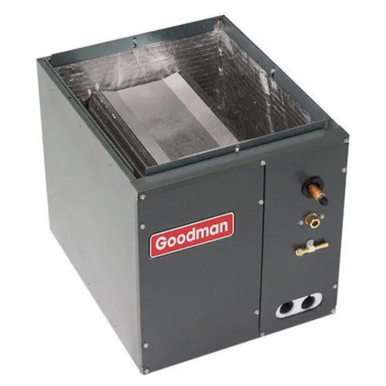

Evaporator Coil — CAPTA6030C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CAPTA6030C3 |
| Product Type | Cased Upflow / Vertical Evaporator Coil |
| Tonnage | 5 Ton |
| Refrigerant Type | R-32 Compatible |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ¾” |
| Dimensions (W×D×H) | 19.5″ × 22.5″ × 39.0″ |
| Shipping Weight | 55 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This complete R-32 15.2 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 445.00 lbs |
|---|---|
| Dimensions | 28.00 × 21.00 × 33.50 in |
| System Type | AC + Gas Furnace System |
| Brand | Goodman |
| Tonnage | 4 Ton |
| SEER2 | 15.2 |
| AFUE | 92% |
| Heating BTU | 80,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Upflow |
| Blower Motor | PSC |
| Voltage | 115V |
