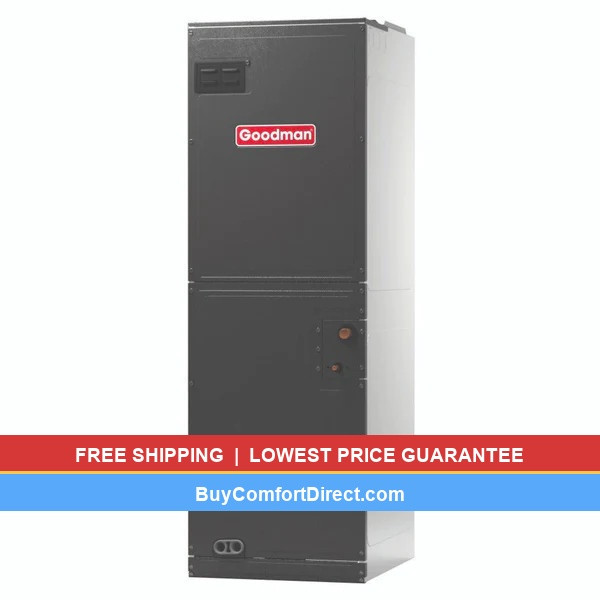

Goodman AMST42CU13 3.5 Ton R-32 Multi-Position Air Handler
$1,892.00
$1,720.00
(You save $172.00)
brand: Goodman
- SKU:
- AMST42CU13
- Condition:
- New
- Shipping:
- Free Shipping
Goodman AMST42CU13 3.5 Ton R-32 Multi-Position Air Handler
The Goodman AMST42CU13 is a 3.5-ton multi-position air handler designed for R-32 refrigerant systems. Featuring a direct-drive multi-speed ECM blower motor and factory-installed TXV, this efficient unit provides reliable air distribution for residential HVAC applications. With its 21" cabinet width and versatile installation options, the AMST42CU13 delivers consistent performance in upflow, downflow, or horizontal configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | AMST42CU13 |
| Product Type | Multi-Position Air Handler |
| Nominal Cooling Capacity | 42,000 BTU/h |
| Tonnage | 3.5 Ton |
| Refrigerant Type | R-32 |
| Expansion Device | Factory-Installed TXV |
| Blower Motor Type | Direct-Drive Multi-Speed ECM |
| Blower Diameter × Width | 10" × 8" |
| Blower Motor HP | ¾ HP |
| Full Load Amps (FLA) | 5.7 Amps |
| Voltage | 208/240V, 1 Phase, 60 Hz |
| Min Circuit Ampacity | 5.9 Amps |
| Max Overcurrent Protection | 15 Amps |
| Min / Max VAC | 197 / 253 VAC |
| Liquid Line Connection | ⅜" OD |
| Suction Line Connection | ¾" OD |
| Coil Drain Connection | ¾" FPT |
| Cabinet Width | 21" |
| Dimensions (W×D×H) | 21" × 24.5" × 53⁷⁄₁₆" |
| Shipping Weight | 153 lbs |
| Installation Configurations | Upflow, Downflow, Horizontal |
| Cabinet Air Leakage | Less than 2.0% @ 1.0" H₂O (ASHRAE 193) |
| Certifications | AHRI Certified, ETL Listed, UL 60335-2-40 Compliant |
Comprehensive Warranty Protection
10
Year Parts Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant
This air handler is designed for use with DOE-compliant R-32 refrigerant systems
Goodman's standard 10 year parts warranty when registered online through the manufacturer.
