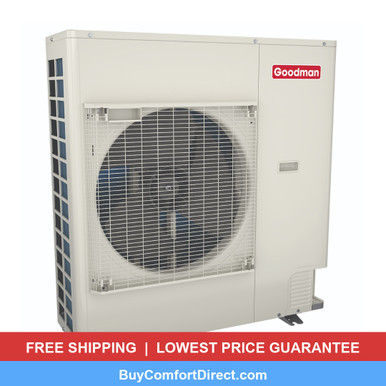

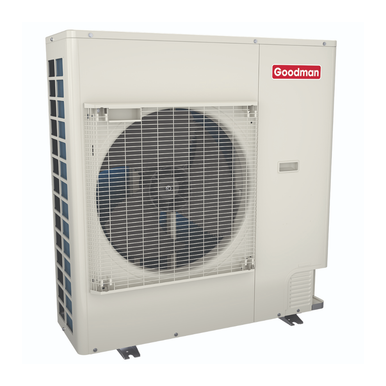

GOODMAN GZV7SA2410 - 2.0 Ton 17.5 SEER2 Variable-Speed Heat Pump
brand: Goodman
- SKU:
- GZV7SA2410
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN GZV7SA2410 - 2.0 Ton 17.5 SEER2 Variable-Speed Heat Pump
High-efficiency 2.0-ton heat pump with inverter-driven variable-speed compressor, eco-friendly R-32 refrigerant, and advanced communicating capabilities. Engineered for quiet operation, dependable cold-climate heating, and long-lasting reliability.
Energy Efficiency
Delivers 17.5 SEER2 efficiency, helping reduce energy use and utility bills.
Variable-Speed Compressor
Advanced inverter swing compressor adapts output smoothly to match demand.
Quiet Operation
Selectable Quiet Mode reduces sound levels to as low as 45 dBA.
Cold Climate Heating
Provides up to 17,000 BTU/h of heating capacity at 5°F outdoor temperature.
Technical Specifications
Factory-rated specifications for the GOODMAN GZV7SA2410.
| Specification | Value |
|---|---|
| Cooling Capacity (95°F) | 23,200 BTU/h |
| Heating Capacity (47°F) | 23,200 BTU/h |
| Heating Capacity (5°F) | 17,000 BTU/h |
| Tonnage | 2.0 Ton |
| SEER2 Rating | 17.5 |
| HSPF2 Rating | Up to 8.8 |
| Compressor Type | Variable-Speed Swing |
| Refrigerant | R-32 |
| Factory Charge | 67 oz |
| Subcooling at Service Valve | 9 ± 1°F |
| Voltage / Phase / Hertz | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity (MCA) | 22.4 A |
| Max Overcurrent Protection | 25 A |
| Condenser Fan Motor | 0.36 HP |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 3/4" |
| Dimensions (HxWxD) | 27⅜" × 36⅝" × 13¾" |
| Net Weight | 132 lbs |
| Shipping Weight | 150 lbs |
| Sound Level (Quiet Mode) | As low as 45 dBA |
Performance & Reliability
The GOODMAN GZV7SA2410 combines high efficiency with reliable inverter technology and quiet operation. With advanced diagnostics and eco-conscious R-32 refrigerant, it’s built to deliver dependable comfort all year round.
Key Benefits:
- Efficient Comfort: 17.5 SEER2 rating helps keep costs down.
- Quiet Design: Cabinet and fan engineered for low sound levels.
- Environmentally Friendly: Uses lower-GWP R-32 refrigerant.
- Durable Construction: Galvanized steel cabinet with powder-coated finish.
- Serviceability: Built-in communicating diagnostics simplify maintenance.
Professional Installation Required
Licensed HVAC installation is required to ensure warranty coverage, safety, and peak performance.
