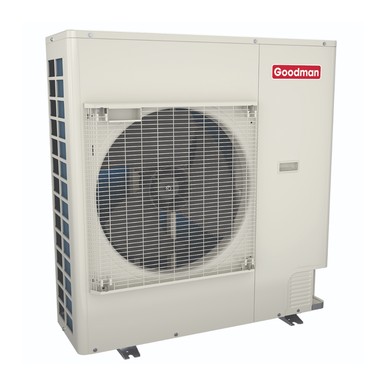

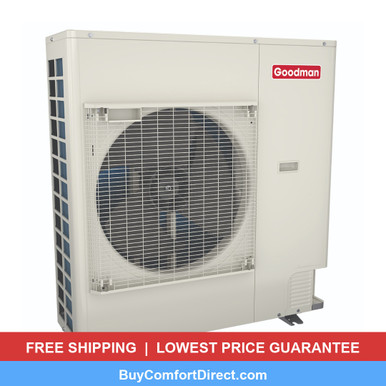

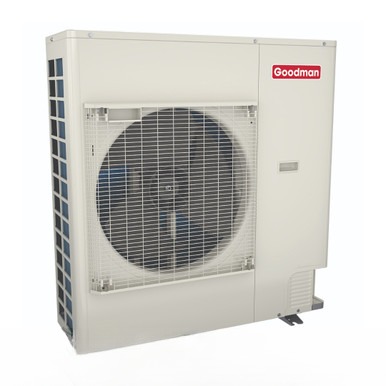

GOODMAN GZV7SA3610 - 3.0 Ton 17.5 SEER2 Variable-Speed Heat Pump
brand: Goodman
- SKU:
- GZV7SA3610
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN GZV7SA3610 - 3.0 Ton 17.5 SEER2 Variable-Speed Heat Pump
High-efficiency side-discharge heat pump with variable-speed inverter technology, engineered for superior comfort, quiet operation, and year-round reliability. Compatible with Goodman communicating controls and optimized for R-32 refrigerant.
Energy Efficiency
17.5 SEER2 rating reduces energy consumption while maintaining consistent comfort.
Variable-Speed Compressor
Advanced inverter-driven swing compressor provides precise temperature control.
Cold Climate Heating
Delivers up to 29,000 BTU/h heating capacity at 5°F outdoor temperature.
Quiet Operation
Quiet Mode with acoustical optimization brings sound levels as low as 45 dBA.
Technical Specifications
Factory-rated performance and dimensional data for the GOODMAN GZV7SA3610 heat pump.
| Specification | Value |
|---|---|
| Cooling Capacity (95°F) | 35,000 BTU/h |
| Heating Capacity (47°F) | 35,000 BTU/h |
| Heating Capacity (5°F) | 29,000 BTU/h |
| Tonnage | 3.0 Ton |
| SEER2 Rating | 17.5 |
| HSPF2 Rating | Up to 8.8 |
| Compressor Type | Variable-Speed Swing |
| Refrigerant | R-32 |
| Factory Charge | 100 oz |
| Subcooling at Service Valve | 9 ± 1°F |
| Voltage / Phase / Hertz | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity (MCA) | 31.8 A |
| Max Overcurrent Protection | 35 A |
| Condenser Fan Motor | 0.36 HP |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 1 1/8" |
| Dimensions (HxWxD) | 39" × 37" × 12⅝" |
| Net Weight | 168 lbs |
| Shipping Weight | 185 lbs |
| Sound Level (Quiet Mode) | As low as 45 dBA |
Performance & Reliability
The GOODMAN GZV7SA3610 combines inverter-driven variable-speed operation with robust construction and advanced diagnostics. Its design ensures high efficiency, reliable cold-climate heating, and quiet comfort year-round.
Key Benefits:
- Optimized Comfort: Variable-speed modulation matches output to demand.
- Energy Savings: 17.5 SEER2 rating keeps utility bills lower.
- Quiet Operation: Acoustically engineered cabinet with Quiet Mode.
- Environmentally Responsible: Uses R-32 refrigerant with lower GWP.
- Durability: Galvanized steel cabinet with powder-coat finish and corrosion-resistant base.
Professional Installation Required
This high-performance system requires installation by a licensed HVAC professional to ensure safety, warranty compliance, and optimal operation.
