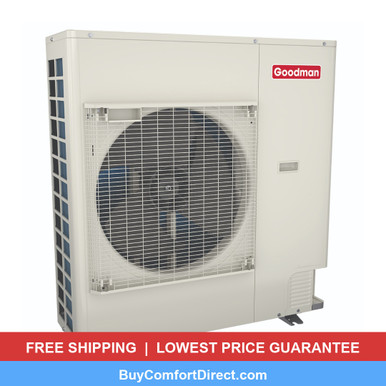

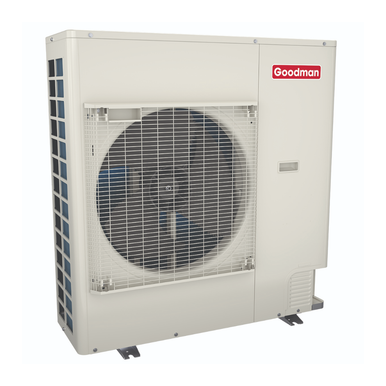

Goodman 3.5 Ton 17.5 SEER2 Heat Pump - Variable Speed - GZV7SA4210
brand: Goodman
- SKU:
- GZV7SA4210
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN GZV7SA4210 - 3.5 Ton 17.5 SEER2 Variable-Speed Heat Pump
High-efficiency 3.5-ton side-discharge heat pump with inverter-driven variable-speed compressor, R-32 refrigerant, and advanced communicating controls. Built for quiet operation, energy savings, and reliable cold-climate heating.
Energy Efficiency
17.5 SEER2 performance provides reduced energy costs with dependable comfort.
Variable-Speed Technology
Inverter-driven swing compressor adapts output smoothly for consistent comfort.
Cold-Climate Heating
Delivers up to 31,000 BTU/h of heating at 5°F outdoor temperature.
Quiet Operation
Selectable Quiet Mode with acoustical design reduces sound to as low as 45 dBA.
Technical Specifications
Factory-rated specifications for the GOODMAN GZV7SA4210.
| Specification | Value |
|---|---|
| Cooling Capacity (95°F) | 41,000 BTU/h |
| Heating Capacity (47°F) | 41,000 BTU/h |
| Heating Capacity (5°F) | 31,000 BTU/h |
| Tonnage | 3.5 Ton |
| SEER2 Rating | 17.5 |
| HSPF2 Rating | Up to 8.8 |
| Compressor Type | Variable-Speed Swing |
| Refrigerant | R-32 |
| Factory Charge | 118 oz |
| Subcooling at Service Valve | 9 ± 1°F |
| Voltage / Phase / Hertz | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity (MCA) | 37.5 A |
| Max Overcurrent Protection | 40 A |
| Condenser Fan Motor | 0.36 HP |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 1 1/8" |
| Dimensions (HxWxD) | 39" × 37" × 12⅝" |
| Net Weight | 179 lbs |
| Shipping Weight | 198 lbs |
| Sound Level (Quiet Mode) | As low as 45 dBA |
Performance & Reliability
The GOODMAN GZV7SA4210 combines inverter technology, advanced diagnostics, and corrosion-resistant construction to deliver dependable heating and cooling with reduced operating noise and improved efficiency.
Key Benefits:
- Comfort Control: Smooth variable-speed operation matches capacity to demand.
- Energy Efficiency: 17.5 SEER2 lowers long-term operating costs.
- Quiet Design: Engineered cabinet and Quiet Mode reduce noise levels.
- Environmentally Responsible: Operates with R-32 refrigerant for reduced GWP.
- Durable Build: Galvanized steel cabinet with powder-coat finish and corrosion-resistant base.
Professional Installation Required
Licensed HVAC installation is required for warranty validation and optimal performance.
