MRCOOL 9,000 BTU Ceiling Cassette - DIYCASSETTE09HP-230C25

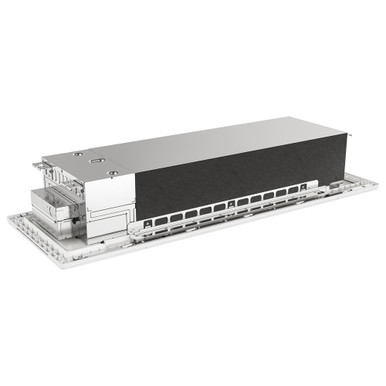

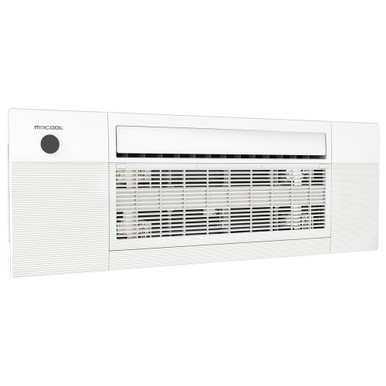

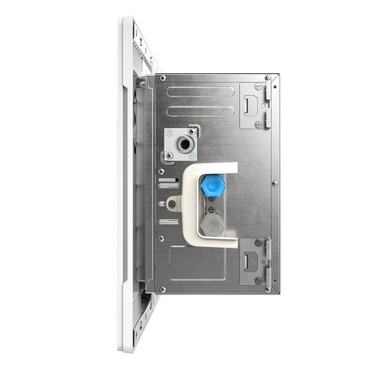

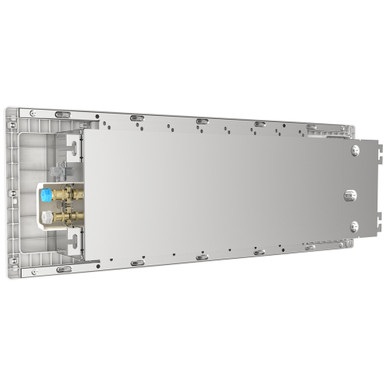

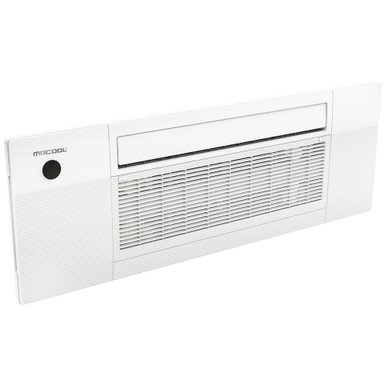

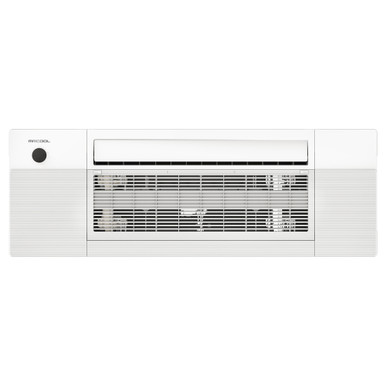

The MRCOOL® DIY® Series OuttaSight® 9k BTU Ceiling Cassette is perfect for any space and provide discreet and out of sight heating and cooling. It is available in multi-zone options and is easy to install, fitting between 16” ceiling joists. The OuttaSight® cassette is designed to work with both current and future joist standards and can be recessed between all types of joists on 16 inch center, including pre-manufactured I-joists. Other ceiling cassettes have strict installation requirements in less ideal locations, but the MRCOOL® OuttaSight® doesn't require ductwork or wall space and is perfect for new constructions or retrofits. The cassette works with the MRCOOL® DIY® Quick Connect® line set which makes installation even easier since it is precharged with refrigerant, eliminating the need for vacuuming. With advanced filtration, each cassette offers an Elevation function that lowers the filter panel for easy filter maintenance. Not only does this cassette feature quiet operation and multiple operating modes, but also provided is a 7-year compressor warranty and 5-year parts warranty, so you can feel confident in your investment.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | DIYCASSETTE09HP-230C25 |
| Product Type | Ceiling Cassette |
| Series | DIY OuttaSight |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Voltage | 208/230 V |
| Phase | 1 |
| Unit Dimensions | 8.98"H x 50.31"W x 13.19"D |
| Shipping Weight | 88 lb |
| Parts Warranty | 5-year Parts |
| Compressor Warranty | 7-year Compressor |
| Warranty | 5-year Parts/7-year Compressor |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Shipping restrictions apply in: GU;PR;VI
Warranty Coverage
5-year Parts/7-year Compressor
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
