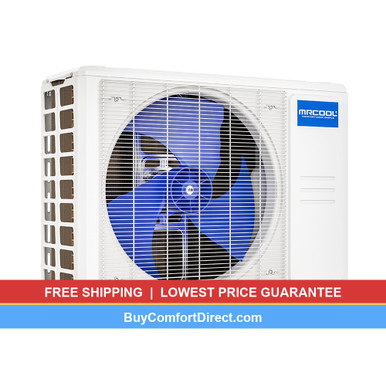

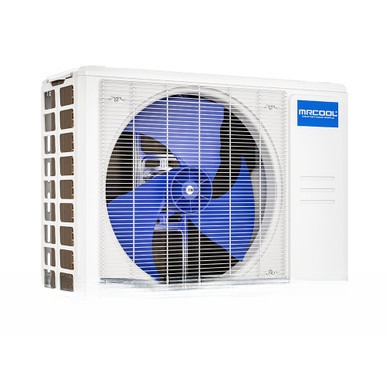

MRCOOL 9,000 BTU 23.6 SEER2 DIY Mini Split System - DIY-09-HP-WM-115D25-O
Installing an HVAC system yourself might seem impossible, but the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split System is designed for exactly that. With no special tools or experience required, this system can heat or cool spaces between up to 350 sq. ft. The pre-charged 25-foot Quick Connect® line set makes installation safe, simple, and cost-effective. Pre-filled with R-454B refrigerant, it eliminates the need for vacuuming. The included DIYPRO® cable replaces the need for electrical conduit, offering added durability against weather, animals, and yardwork tools. You can control the system using the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. For coastal homes, the Gold Fin® condenser coating provides superior corrosion resistance, ensuring long-lasting performance. This system offers multiple modes and features to enhance comfort and efficiency. The Timer function helps reduce energy use, while Auto mode maintains your set temperature effortlessly. After a power outage, the system automatically restores previous settings. Backed by an industry-leading warranty, the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split System now includes eligibility for the MRCOOL® Care Program, along with a base warranty of 7-year compressor/5-year parts. With innovative technology, easy installation, and reliable performance, this system is built to deliver comfort and peace of mind.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |

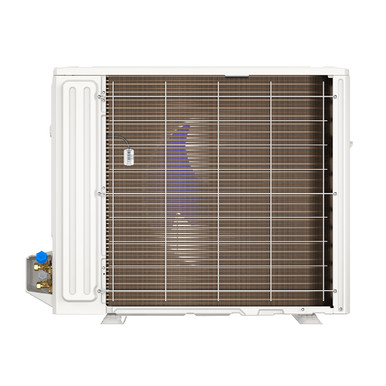

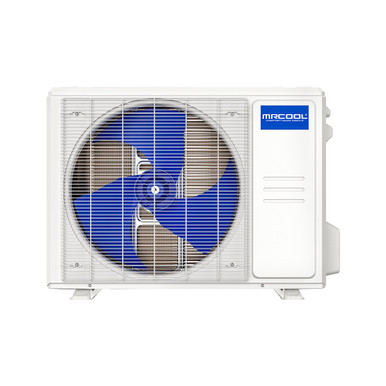

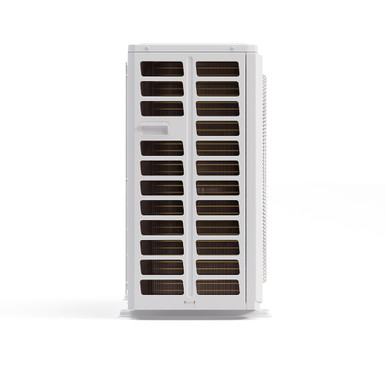

| Model Number | DIY-09-HP-C-115D25-O |
| Product Type | Heat Pump Condenser |
| Series | DIY 5th gen Single-Zone Mini-splits |
| Tonnage | 0.75 |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 10,000 BTU |
| SEER2 | 23.6 |
| EER2 | 14 |
| Refrigerant | R-454B |
| Voltage | 115 V |
| Phase | 1 |
| Color | White |
| Unit Dimensions | 21.85"H x 30.12"W x 11.93"D |
| Shipping Weight | 83.11 lb |
| Parts Warranty | 5 |
| Compressor Warranty | 7 |
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |

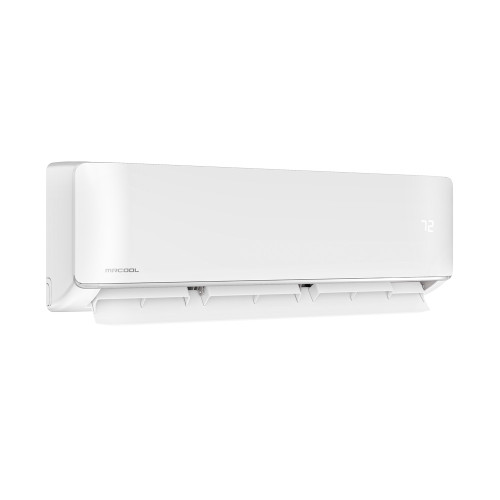

| Model Number | DIY-09-HP-WMAH-115D25-O |
| Product Type | Wall Mount Air Handler |
| Series | DIY 5th gen Single-Zone Mini-splits |
| Tonnage | 0.75 |
| Max Coverage Area | 400 sqft |
| Voltage | 115 V |
| Phase | 1 |
| Mount Type | Wall |
| Color | White |
| Unit Dimensions | 11.69"H x 31.57"W x 7.44"D |
| Shipping Weight | 35.49 lb |
| Parts Warranty | 5 |
| Compressor Warranty | 7 |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Coverage
5
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
