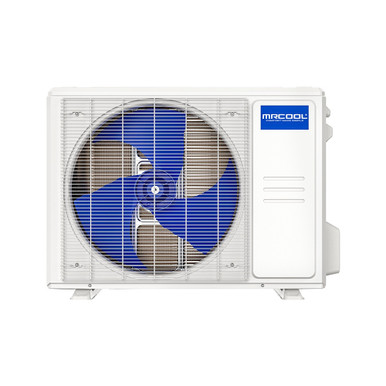

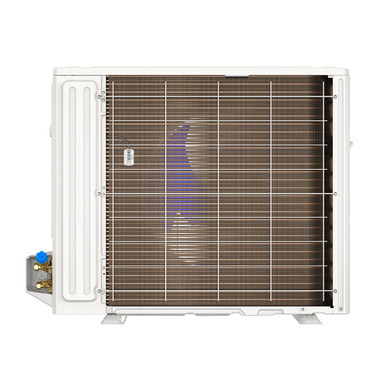

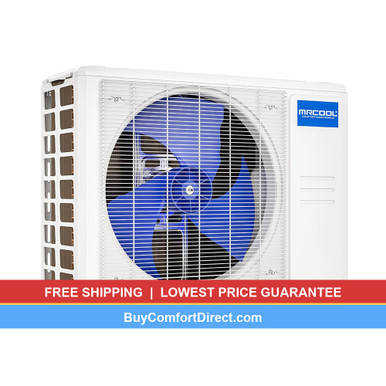

MRCOOL 18,000 BTU 22.5 SEER2 DIY Mini Split System - DIY-18-HP-WM-230D25-O


$3,811.50 $3,465.00
(You save $346.50)

brand:

SKU:
DIY-18-HP-WM-230D25-O
UPC:
840255588553
Condition:
New
Shipping:
Free Shipping


MRCOOL 18,000 BTU 22.5 SEER2 DIY Mini Split System - DIY-18-HP-WM-230D25-O

MRCOOL 18,000 BTU 22.5 SEER2 DIY Mini Split System - DIY-18-HP-WM-230D25-O

Introducing the new 5th Generation MRCOOL® DIY® 18K BTU 22.5 SEER Ductless Heat Pump Single Zone Mini Split System, a game-changer for home climate control. Designed for straightforward installation, it requires no specialized tools or professional help, making it an excellent choice for spaces ranging from 500-750 sq. ft. The system includes a pre-charged 25-foot QuickConnect® line set filled with R-454B refrigerant, streamlining installation by eliminating the need for vacuuming. The DIYPRO® cable adds extra protection against weather, animals, and yardwork damage, replacing the need for traditional electrical conduit. Managing your home's temperature has never been easier. You can adjust settings using the included remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. The Gold Fin System enhances durability, providing excellent corrosion resistance for coastal environments. Designed for efficiency and comfort, this system offers multiple features. The Timer function helps control energy use, while Auto mode maintains your preferred temperature without manual adjustments. Built for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, featuring eligibility for the MRCOOL® Care Program, plus a 7-year compressor and 5-year base warranty on parts. With its innovative design, simple installation, and dependable performance, this system delivers hassle-free comfort for your home.

Technical Specifications

Specification Value
Manufacturer MRCOOL
Model Number DIY-18-HP-WM-230D25-O
Product Type DIY Mini Split System
Series DIY 5th gen Single-Zone Mini-split Bundle
Tonnage 1.5
Cooling Capacity 18,000 BTU
Heating Capacity 18,000 BTU
Max Coverage Area 800 sqft
SEER2 22.5
EER2 13.7
Refrigerant R-454B
Voltage 208/230 V
Phase 1
Mount Type Wall
Color White
Shipping Weight 163.8 lb
Parts Warranty 5
Compressor Warranty 7

Compliance & Shipping Notices

  • WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features

  • Intertek listed 5031495
  • Easy DIY installation
  • Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Warranty Coverage

5
Year Parts Warranty
7
Year Compressor Warranty

5

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

DOE Compliant Nationwide

This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Extended Limited Lifetime when registered, 5 years base parts warranty and 7 years base compressor warranty when it is not registered.
