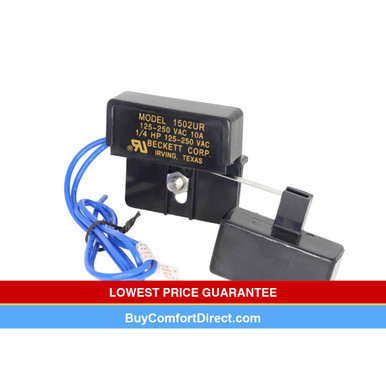

Becket Condensate Overflow Safety Switch - 1502UR
The Becket 1502UR Condensate Overflow Safety Switch is a critical safety component designed to prevent drain pan overflow in air conditioning and heating systems. This reliable float-actuated switch monitors water levels in condensate drain pans and automatically shuts down equipment when high water levels are detected, preventing water damage and equipment flooding.
Drain Pan Safety Switch Specifications - 1502UR
Professional-grade float-actuated safety switch engineered for condensate drain pan applications. Features reliable snap-action switching with UR rating for safety and code compliance in residential and commercial HVAC systems.
| Specification | Value |
|---|---|
| Model Number | 1502UR |
| Manufacturer | Becket Corporation |
| Switch Type | Condensate Overflow Safety Switch |
| Actuation Method | Float Activated |
| Operating Voltage | 125-250 VAC / Low Voltage DC |
| Contact Rating | 10 Amp @ 125-250 VAC |
| Switch Configuration | Single Pole, Double Throw (SPDT) |
| Contact Type | Single Break Snap Action |
| Contact Material | Silver Contacts |
| Terminal Connections | 0.020" x 0.187" Female Spade Terminals |
| Wire Leads | 18" Wire Leads Included |
| Mounting Type | Drill Clamp Mount |
| Safety Rating | UR Rated |
| Application | Metal or Plastic Drain Pans |
| UPC Code | 052309411148 |
Why Choose the Becket 1502UR Overflow Switch?

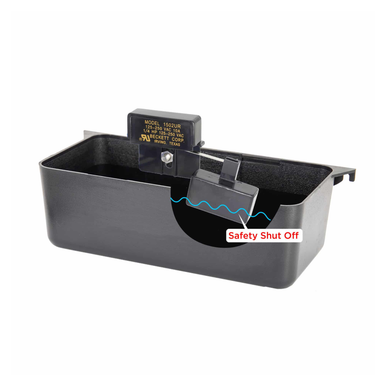

The Becket 1502UR provides essential overflow protection for HVAC systems by monitoring condensate drain pan water levels. When the float rises due to high water levels, the switch activates to shut down equipment, preventing costly water damage and equipment flooding in both residential and commercial applications.
Key Features:

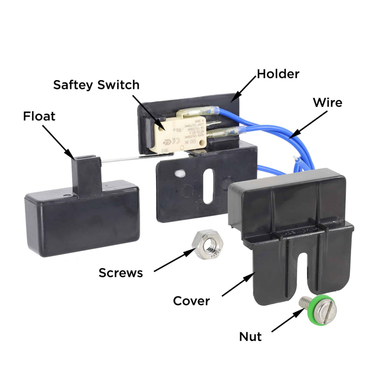

- Float-Activated Operation: Reliable float mechanism provides accurate water level detection with consistent switching action
- Dual Voltage Capability: Works with both line voltage (125-250 VAC) and low voltage DC applications
- SPDT Configuration: Single pole, double throw contacts allow for equipment shutdown or alarm activation
- High Current Rating: 10 amp contact rating handles up to 1/4 HP motor loads
- UR Safety Rating: Underwriters Laboratories rated for safety and code compliance
- Universal Mounting: Drill clamp mount works with both metal and plastic drain pans
- Easy Installation: 18" wire leads and spade terminal compatibility for simple wiring
- Reliable Switching: Snap-action mechanism with silver contacts for long service life
Compatible Applications:
The 1502UR is ideal for air conditioning systems, heat pumps, furnaces with humidifiers, and any HVAC equipment that produces condensate. Compatible with both metal and plastic drain pans. Can be wired to shut down equipment directly or activate alarm systems when high water levels are detected.
Installation & Wiring:
Features drill clamp mounting that attaches to drain pan without screws or special hardware. Switch can be wired in series with equipment to provide shutdown protection, or connected to alarm circuits for high water level notification. Professional installation ensures proper operation and code compliance.
Protect Your Equipment Investment
Prevent costly water damage with reliable overflow protection. This switch provides essential safeguarding for your HVAC equipment by monitoring condensate levels and automatically shutting down systems when high water conditions occur. Contact your HVAC professional for proper installation and system integration.
