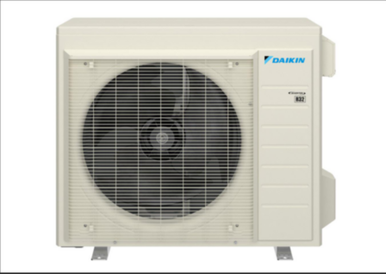

Daikin OTERRA 18 SEER2 9K BTU Heat Pump R-32

Description

The RXQ09ASBU9 is a heat pump from Daikin stocked by Buy Comfort Direct — full listing: Daikin OTERRA 18 SEER2 9K BTU Heat Pump R-32. This page covers what it is, where it fits in a system, what to check before you order, and how it ships.

About the RXQ09ASBU9

• Energy Star Certified: No
• Refrigerant Type: R-32
• Unit Height: 21-15/16 in
• Unit Width: 26-9/16 in
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Compressor Stages: Inverter
• Compressor Type: Swing
• Unit Weight: 59 lb
• Cooling Capacity Max: 10500 Btu/H
• Cooling Capacity Min: 2800 Btu/H
• Heating Capacity Max: 12000 Btu/H
• Heating Capacity Min: 3800 Btu/H
• Tonnage: 0.75
• Model Efficiency: 20 SEER
• Unit Depth: 11-3/16 in
• Heat Exchanger Type: Air Cooled

Where the RXQ09ASBU9 fits

This is the OTERRA outdoor heat pump by itself — 9,000 BTU, no indoor head included. Order it this way when you are replacing a failed condenser and keeping the indoor unit, or when you are building the system up piece by piece.

It is an inverter-driven, single-zone unit on R-32. It runs on 115 V, which means a standard household circuit rather than a new 240-volt run — that alone can save a few hundred dollars of electrical work on a retrofit. A working system also needs the matching OTERRA indoor head and a correctly sized line set. Heat pump means it both cools and heats, so it is the outdoor unit for a year-round install rather than cooling only.

See the rest of the line in Daikin OTERRA systems, or start from the room instead with our HVAC sizing tool. For help matching an indoor unit to an outdoor unit, call (877) 843-4822 and we will check the model numbers against Daikin’s tables before you buy.

Specifications

System Type	Mini Split
SEER2	18
Refrigerant	R-32

Where the RXQ09ASBU9 fits

A heat pump is an air conditioner that can run in reverse: in winter it pulls heat from outdoor air and moves it inside, which is far cheaper than resistance heat in most of the country. The RXQ09ASBU9 pairs with a matched indoor coil or air handler, and in cold climates it is often installed dual-fuel with a gas furnace that takes over below the balance point.

Inverter (variable-capacity) heat pumps modulate output to match the load, which keeps the house closer to setpoint, runs quieter and pulls the best efficiency numbers; single-stage units cost less up front and are simpler to service. Both need a matched indoor coil to hit their ratings.

Background reading: the U.S. Department of Energy heat pump guide.

What to check before you order

• Tonnage from a load calculation; SEER2 and HSPF2 for your climate.
• Matched indoor coil or air handler with the same refrigerant (AHRI-listed pairing).
• Thermostat with an O/B reversing-valve terminal, or a dual-fuel thermostat if pairing with a furnace.
• Electrical service, pad, disconnect and line set (sold separately).

Installation and service notes

Outdoor heat pumps sit on a pad raised above snow and grass level with clearance for defrost water to drain, a disconnect within sight, and a line set sized and run within the manufacturer’s length and lift limits. Commission it in both heating and cooling modes and confirm the reversing valve and defrost cycle operate before you leave.

Why buy the RXQ09ASBU9 from Buy Comfort Direct

We are a stocking HVAC distributor based in Winder, Georgia — not a marketplace reseller. Orders over $99 ship free, and financing is available at checkout through Affirm. If you are not sure this is the right part, call (877) 843-4822 before you order and we will match it to your equipment. Browse the rest of our Daikin, and see what customers say on our reviews page.

Ordering and delivery

In-stock items ship from our Winder, Georgia warehouse. Orders over $99 ship free; large equipment travels by freight carrier and parts by ground, and you will get tracking by email when it leaves. Need it matched to a system, or need a quantity that is not on the shelf? Use the contact page or call (877) 843-4822 and we will confirm availability before you pay.

RXQ09ASBU9 FAQ

Will a heat pump keep up in winter here?

In Georgia and most of the Southeast, yes, with backup heat for the coldest nights. Further north, dual-fuel with a furnace is the usual answer.

Does the RXQ09ASBU9 ship free?

Yes on orders over $99 — most orders that include it qualify. Large equipment ships by freight carrier; parts ship by ground.

How do I know it matches my equipment?

Send us your equipment model number through our contact page or call (877) 843-4822. We check the pairing before it ships.
