GOODMAN 2.5 Ton 16.2 SEER2 R-32 96% AFUE Gas Furnace Air Conditioning System (Upflow Coil)
brand: Goodman
- SKU:
- GXV6SS3010, CAPEA3022B3, GRVT960603BN, GTST-CW-WH-A
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 2.5 Ton 16.2 SEER2 R-32 96% AFUE Gas Furnace Air Conditioning System (Upflow Coil)

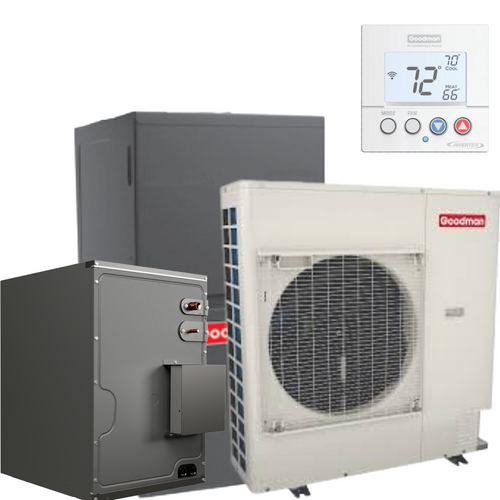

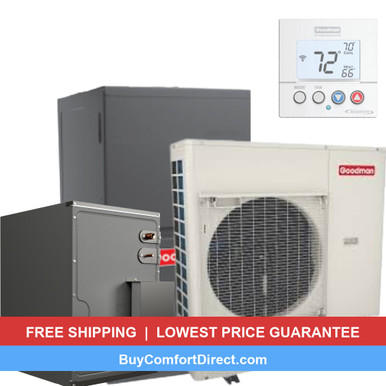

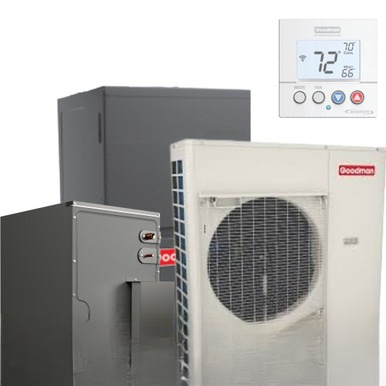

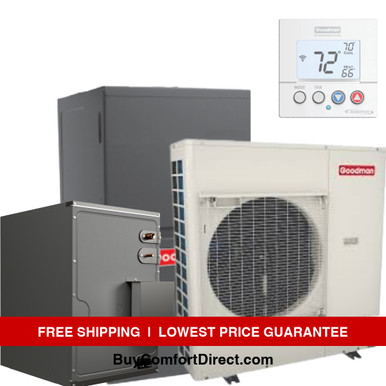

Experience reliable home comfort with this complete Goodman 2.5-ton HVAC system (Upflow Coil). This matched system combines a high-efficiency 16.2 SEER2 air conditioner, a 96% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GXV6SS3010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GXV6SS3010 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 2.5 Ton |
| Cooling Capacity | 28,400 BTU/h |
| SEER2 Rating | 16.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 76 oz |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 22.4 A |
| Max Overcurrent Protection | 25 A |
| Sound Level | 67 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |
| Dimensions (W×D×H) | 36" × 13" × 27.375" |
| Shipping Weight | 143 lbs |
Gas Furnace — GRVT960603BN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GRVT960603BN |
| Product Type | Gas Furnace |
| BTU Input | 60,000 BTU/h |
| BTU Output | 58,200 BTU/h |
| AFUE | 96% |
| Heating Stages | Two Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 115/1/60V-1-60Hz |
| Min Circuit Ampacity | 7.6 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 28.875" × 34.5" × 17.5" |
| Shipping Weight | 117 lbs |
Evaporator Coil — CAPEA3022B3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CAPEA3022B3 |
| Product Type | Cased Upflow Evaporator Coil |
| Tonnage | 2.5 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ⅞" |
| Dimensions (W×D×H) | 17.5" × 21.0" × 22.0" |
| Shipping Weight | 48 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 16.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
