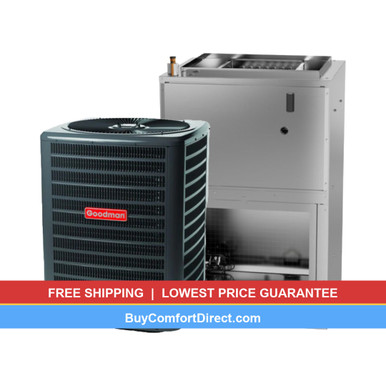

GOODMAN 3 Ton 14.3 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler AND 10kw Heat Kit
brand: Goodman
- SKU:
- GLXS4BA3610, AWST36SU1310
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 3 Ton 14.3 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler AND 10kw Heat Kit
Experience superior comfort cooling with this complete Goodman 3-ton air conditioning system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 14.3 SEER2 air conditioner with a wall-mounted air handler that includes a 10kW electric heat kit for reliable winter heating. Perfect for homes where floor space is limited, this system delivers efficient cooling and heating with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

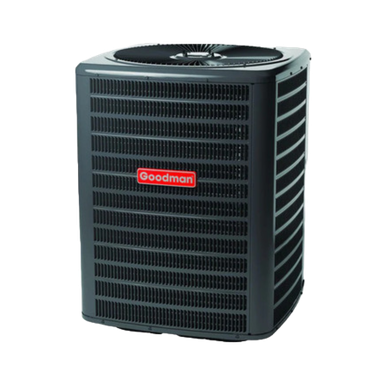

Air Conditioner – GLXS4BA3610A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLXS4BA3610A |
| Tonnage | 3 Ton |
| Cooling Capacity (Nominal) | 36,000 BTU/h |
| SEER2 Rating | 14.3 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 16.0 A |
| Compressor LRA | 80.0 A |
| Fan Motor Type | PSC (1/4 HP) |
| Fan Motor FLA | 1.50 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 21.9 A |
| Max Overcurrent Protection | 30 A |
| Sound Level | 75.5 dBA |
| Dimensions (H×W×D) | 35¼" × 35½" × 35½" |
| Weight | 210 lbs |
| Refrigerant Charge | 130 oz (Factory charged for 15' line) |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |

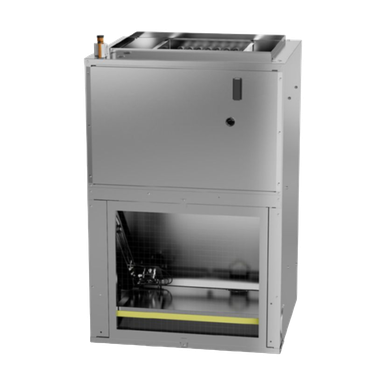

Wall-Hung Air Handler – AWST36LU1310A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | AWST36LU1310A |
| Tonnage | 3 Ton |
| Type | Wall-Hung Indoor Air Handler |
| Refrigerant | R-32 Compatible |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208–230V / 1Ph / 60Hz |
| Integrated Electric Heat Kit | 10 kW (34,121 BTU/h) |
| Heat Kit Voltage | 208–230V / 1Ph / 60Hz |
| Heat Kit Amperage | 43.5 A @ 230V |
| Heat Kit Stages | 3-Stage (4kW + 3kW + 3kW) |
| Metering Device | TXV (Thermal Expansion Valve) |
| Liquid Connection | ⅜" |
| Suction Connection | ⅞" |
| Dimensions (H×W×D) | 31" × 33" × 11" |
| Weight | 90 lbs |
| Filter Type | Washable/Reusable |
| Mounting | Wall-Mount Bracket Included |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 air conditioner meets Department of Energy minimum efficiency requirements for all U.S. climate zones
