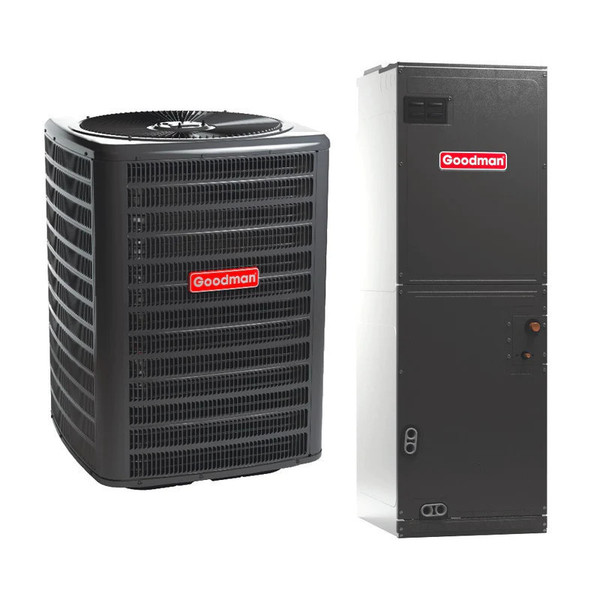

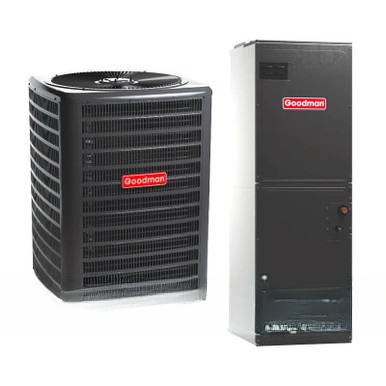

GOODMAN 3 Ton 15.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler
brand: Goodman
- SKU:
- GLXS5BA3610, AMST36BU13
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 3 Ton 15.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler
Experience premium cooling comfort with this Goodman 3-ton R-32 15.2 SEER2 air conditioning system. This complete matched system combines a high-efficiency air conditioner outdoor unit with a versatile multi-positional air handler. Designed for reliable cooling performance, this system delivers exceptional energy efficiency, quiet operation, and dependable comfort with R-32 refrigerant.
Technical Specifications

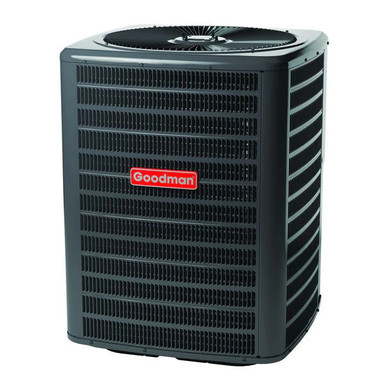

Air Conditioner — GLXS5BA3610 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 3 Ton |
| Refrigerant | R-32 |
| SKU/Model No | GLXS5BA3610 |
| Product Type | Split System Air Conditioner |
| Cooling Capacity | 36,000 BTU/h |
| SEER2 Rating | Up to 15.2 |
| EER2 Rating | None |
| Compressor Type | Scroll |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 17.8 A |
| Max Overcurrent Protection | 30 A |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |
| Refrigerant Charge | 88 oz |
| Dimensions (H×W×D) | 39.5" × 35" × 35" |
| Weight | 191 lbs |
| Sound Level | 71.0 dBA |

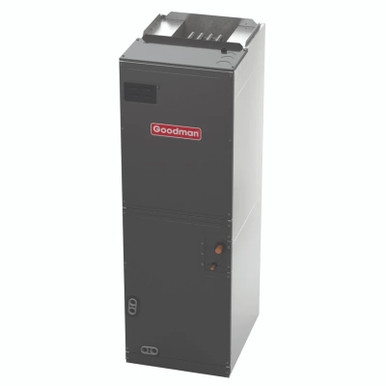

Air Handler — AMST36BU13 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 3 Ton |
| Refrigerant | R-32 Compatible |
| SKU/Model No | AMST36BU13 |
| Product Type | Multi-Positional Air Handler |
| Motor Type | PSC |
| Motor HP | N/A HP |
| Nominal Cooling Capacity | 36,000 BTU/h |
| Airflow | None CFM |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 5.6/5.6 A |
| Max Overcurrent Device | 15/15 A |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ⅞" |
| Metering Device | TXV (Internal) |
| Cabinet Configuration | Multi-Positional (B Cabinet) |
| Dimensions (H×W×D) | 53.4375" × 16.3125" × 17.5625" |
| Weight | 129 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This complete R-32 15.2 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
