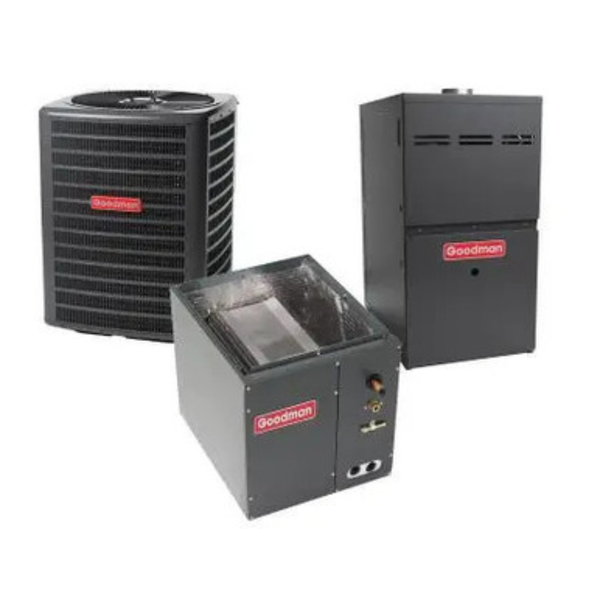

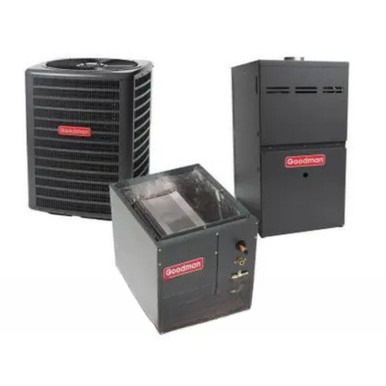

GOODMAN 5 Ton 13.4 SEER2 R-32 80% AFUE AC System (Upflow Coil)
brand: Goodman
- SKU:
- GLXS3BN6010, GR9S801005CNA, CAPTA6030C3
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 5 Ton 13.4 SEER2 R-32 80% AFUE AC System (Upflow Coil)
Experience year-round comfort with this complete Goodman 5-ton air conditioning system with upflow coil. This matched system combines a high-efficiency 13.4 SEER2 air conditioner for efficient cooling, a 80% AFUE single-stage gas furnace for reliable heating, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable performance with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GLXS3BN6010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS3BN6010 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 5 Ton |
| Cooling Capacity | 60,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 91 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 31.1 A |
| Max Overcurrent Protection | 50 A |
| Sound Level | 74.0 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1⅛" |
| Dimensions (W×D×H) | 35" × 35" × 39.5" |
| Shipping Weight | 229 lbs |

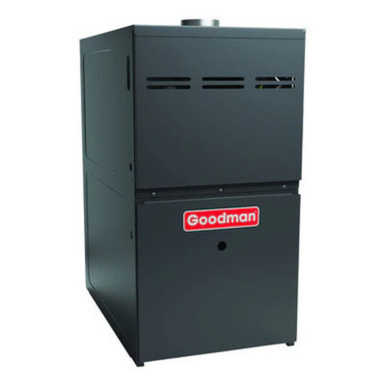

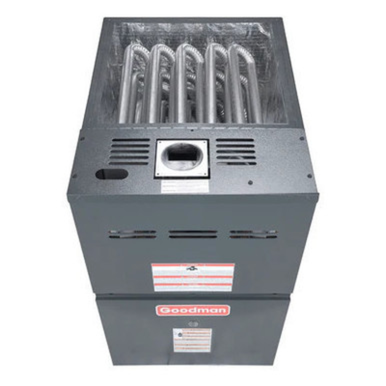

Gas Furnace — GR9S801005CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GR9S801005CNA |
| Product Type | Gas Furnace |
| BTU Input | 100,500 BTU/h |
| BTU Output | 80,400 BTU/h |
| AFUE | 80% |
| Heating Stages | 1 |
| Blower Motor Type | PSC |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0" × 29.0" × 33.0" |
| Shipping Weight | 180 lbs |
Evaporator Coil — CAPTA6030C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CAPTA6030C3 |
| Product Type | Cased Upflow / Vertical Evaporator Coil |
| Tonnage | 5 Ton |
| Refrigerant Type | R-32 Compatible |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ¾" |
| Dimensions (W×D×H) | 19.5" × 22.5" × 39.0" |
| Shipping Weight | 55 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant for Northern Regions
This complete R-32 13.4 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
