Goodman 5 Ton Upflow 92% Gas System 14.3 SEER2 21" Wide R-32
brand: Goodman
- SKU:
- GLXS4BA6010, GR9S921005CNA, CAPT6030C3
- Condition:
- New
- Shipping:
- Free Shipping

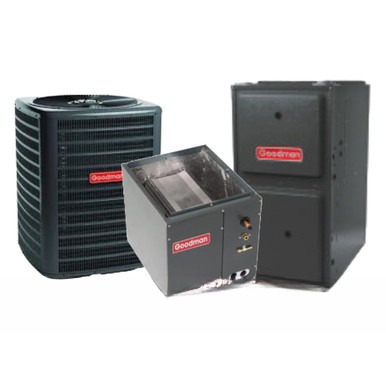

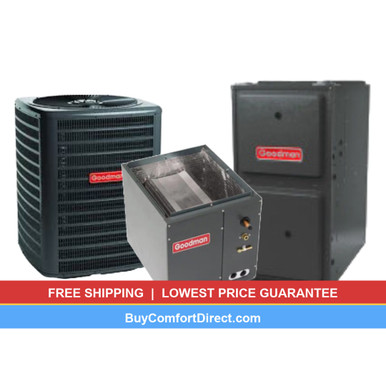

GOODMAN 5 Ton 14.3 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Upflow Coil)
Experience reliable home comfort with this complete Goodman 5-ton R-32 HVAC system (Upflow Coil). This matched system combines a high-efficiency 14.3 SEER2 air conditioner, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow/downflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Complete System Components (Upflow Coil)
Air Conditioner
Goodman GLXS4BA6010A
5.0 Ton (60,000 BTU/h)
Single-Stage Scroll Compressor
R-32 Refrigerant
14.3 SEER2
Gas Furnace
Goodman GR9S921005CNA
100,000 BTU/h Input
92,100 BTU/h Output
92% AFUE
Single-Stage Multi-Speed ECM
Evaporator Coil
Goodman CAPTA6030C3
5 Ton Cased Upflow/Downflow Coil
All-Aluminum Construction
Factory-Installed TXV
R-32 Compatible
Technical Specifications
Air Conditioner – GLXS4BA6010A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLXS4BA6010A |
| Tonnage | 5.0 Ton |
| Cooling Capacity (Nominal) | 60,000 BTU/h |
| SEER2 Rating | 14.3 |
| EER2 Rating | 11.2 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Scroll |
| Compressor RLA | 23.9 A |
| Compressor LRA | 148.0 A |
| Fan Motor Type | PSC (1/4 HP) |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 31.9 A |
| Max Overcurrent Protection | 50 A |
| Sound Level | 75.0 dBA |
| Dimensions (H×W×D) | 38⅛" × 38⅛" × 38⅛" |
| Weight | 224 lbs |
| Refrigerant Charge | 177 oz (Factory charged for 15' line) |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |
Gas Furnace – GR9S921005CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GR9S921005CNA |
| BTU Input | 100,000 BTU/h |
| BTU Output | 92,100 BTU/h |
| AFUE | 92% |
| Stages | Single-Stage |
| Blower Motor | Multi-Speed ECM (9-Speed) |
| Blower HP | 1 HP |
| Blower Size | 11" × 10" |
| Number of Burners | 5 |
| Voltage | 115 VAC, 60 Hz, Single-Phase |
| Min Circuit Ampacity | 16.7 A |
| Max Overcurrent Device | 25 A |
| Temperature Rise Range | 35–65°F |
| Vent Diameter | 2" - 3" |
| Filter Size | (1) 20" × 25" (bottom) or (2) 16" × 25" (side) |
| Cabinet Width | 21" |
| Dimensions (W×D×H) | 21" × 28⅞" × 34½" |
| Weight | 141 lbs |
Evaporator Coil – CAPTA6030C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | CAPTA6030C3 |
| Tonnage | 3½–5 Ton |
| Type | Cased Upflow/Downflow Indoor Coil |
| Expansion Device | Factory-Installed TXV (Thermal Expansion Valve) |
| Refrigerant | R-32 Compatible |
| Construction | All-Aluminum A-Coil |
| Dimensions (W×D×H) | 21" × 21" × 30" |
| Weight | 66 lbs |
| Liquid Connection | ⅜" |
| Suction Connection | ⅞" |
| Cabinet Style | Cased with Drain Pan |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 air conditioner meets Department of Energy minimum efficiency requirements for all U.S. climate zones
