Description

The CAPTA4230C3 — Goodman Evaporator Coil – CAPTA4230C3 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.

About the CAPTA4230C3



* {
box-sizing: border-box;
margin: 0;
padding: 0;
}

#product-container {
font-family: ‘Segoe UI’, Tahoma, Geneva, Verdana, sans-serif;
max-width: 1200px;
margin: 0 auto;
padding: 20px;
color: #000;
background: #fff;
}

#product-container h1 {
font-size: 2.5em;
color: #D53938;
margin-bottom: 10px;
padding-bottom: 15px;
border-bottom: 3px solid #D53938;
font-weight: 700;
}

#product-container h2 {
font-size: 1.8em;
color: #D53938;
margin: 30px 0 15px 0;
font-weight: 600;
}

#product-container p {
line-height: 1.8;
margin-bottom: 15px;
font-size: 1.05em;
color: #333;
}

.intro-section {
background: linear-gradient(135deg, #f8f9fa 0%, #e9ecef 100%);
padding: 25px;
border-radius: 8px;
margin: 25px 0;
border-left: 5px solid #D53938;
}

.specs-table {
width: 100%;
border-collapse: collapse;
margin: 20px 0;
box-shadow: 0 2px 8px rgba(0,0,0,0.1);
border-radius: 8px;
overflow: hidden;
}

.specs-table thead {
background: linear-gradient(135deg, #D53938 0%, #b32d2c 100%);
color: white;
}

.specs-table th {
padding: 15px;
text-align: left;
font-weight: 600;
font-size: 1.1em;
}

.specs-table td {
padding: 12px 15px;
border-bottom: 1px solid #e0e0e0;
}

.specs-table tbody tr {
background: #fff;
transition: all 0.3s ease;
}

.specs-table tbody tr:nth-child(even) {
background: #f8f9fa;
}

.specs-table tbody tr:hover {
background: linear-gradient(90deg, #D53938 0%, #b32d2c 100%) !important;
color: white;
transform: scale(1.01);
box-shadow: 0 4px 12px rgba(213, 57, 56, 0.3);
}

.specs-table tbody tr:hover td {
color: white;
}

.warranty-section {
background: linear-gradient(135deg, #F8F9FA 0%, #e9ecef 100%);
padding: 50px 30px;
border-radius: 15px;
margin: 50px 0;
}

.warranty-section h2 {
color: #D53938;
text-align: center;
margin-bottom: 40px;
font-size: 28px;
}

.warranty-grid {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
gap: 30px;
max-width: 800px;
margin: 0 auto;
}

.warranty-card {
background: white;
padding: 30px;
border-radius: 12px;
text-align: center;
border: 2px solid rgba(213,57,56,0.3);
transition: all 0.3s ease;
}

.warranty-card:hover {
background: rgba(213,57,56,0.05);
border-color: #D53938;
transform: translateY(-5px);
}

.warranty-years {
font-size: 48px;
font-weight: 700;
color: #D53938;
}

.warranty-label {
color: #333;
font-size: 14px;
font-weight: 600;
}

.cta-section {
background: linear-gradient(135deg, #F8F9FA 0%, #e9ecef 100%);
padding: 60px 30px;
border-radius: 15px;
margin-top: 50px;
box-shadow: 0 10px 40px rgba(0,0,0,0.2);
}

.cta-content {
text-align: center;
margin-bottom: 40px;
}

.cta-section h2 {
color: #D53938;
margin: 0 0 15px 0;
font-size: 28px;
font-weight: 700;
}

.cta-section p {
color: #333;
margin: 0;
font-size: 16px;
max-width: 700px;
margin-left: auto;
margin-right: auto;
line-height: 1.6;
}

.compliance-badge {
background: rgba(213,57,56,0.05);
border: 2px solid #D53938;
border-radius: 12px;
padding: 25px 30px;
display: flex;
align-items: center;
gap: 20px;
max-width: 700px;
margin: 0 auto;
transition: all 0.3s ease;
}

.compliance-badge:hover {
background: rgba(87,169,249,0.05);
transform: translateY(-2px);
box-shadow: 0 8px 20px rgba(213,57,56,0.2);
}

.badge-icon {
font-size: 32px;
color: #D53938;
font-weight: 700;
background: rgba(213,57,56,0.2);
width: 50px;
height: 50px;
border-radius: 50%;
display: flex;
align-items: center;
justify-content: center;
flex-shrink: 0;
}

.badge-content {
text-align: left;
}

.badge-content h3 {
color: #D53938;
margin: 0 0 8px 0;
font-size: 18px;
font-weight: 700;
}

.badge-content p {
color: #555;
margin: 0;
font-size: 14px;
line-height: 1.5;
}

@media (max-width: 768px) {
#product-container {
padding: 15px;
}

#product-container h1 {
font-size: 1.8em;
}

#product-container h2 {
font-size: 1.4em;
}

.specs-table {
font-size: 0.9em;
}

.specs-table th,
.specs-table td {
padding: 10px;
}

.cta-section {
padding: 40px 20px;
}

.compliance-badge {
flex-direction: column;
text-align: center;
padding: 20px;
}

.badge-content {
text-align: center;
}
}

Where the CAPTA4230C3 fits

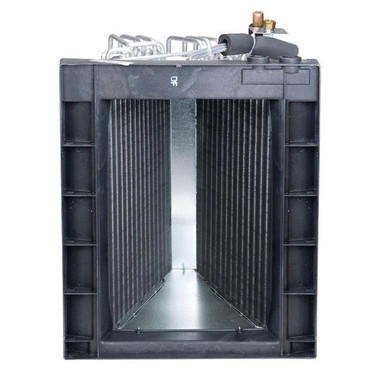

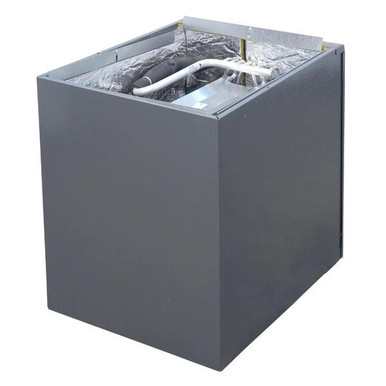

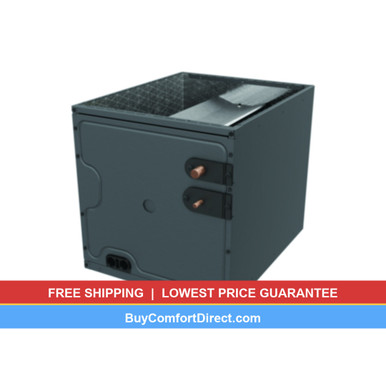

The CAPTA4230C3 is a 3.5 ton (42,000 BTU) cased A-coil for an upflow or downflow furnace or air handler. It runs on R-32 and arrives with a factory-installed thermal expansion valve (TXV), so there is no metering kit to buy separately. The cabinet measures 21 inches wide by 30 inches high and 21 inches deep.

Three things decide whether this is the right coil for your job. Capacity first: match it to a 3.5 ton outdoor unit, because an evaporator that is a size off the condenser costs you both efficiency and dehumidification. Refrigerant second: this is an R-32 coil and belongs on an R-32 condenser or heat pump, not on an older R-410A system. Cabinet third: a 21 inch cabinet has to sit on a 21 inch furnace. The same coil is built in 14, 17-1/2, 21 and 24-1/2 inch widths, and the wrong one will not seal to the plenum.

Browse the rest of the range in Goodman evaporator coils, or size the whole system first with our HVAC sizing tool. If you want a second pair of eyes on the pairing before you spend the money, call (877) 843-4822 and we will check the model numbers against each other.

CAPTA4230C3: fitment and resources

Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 3.5-Ton or the Goodman catalog, and see what customers say on our reviews page.

Ordering and delivery

In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.

CAPTA4230C3 FAQ

Does the CAPTA4230C3 ship free?

Yes on orders over $99 — most orders that include it qualify.

How do I know it fits my system?

Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
