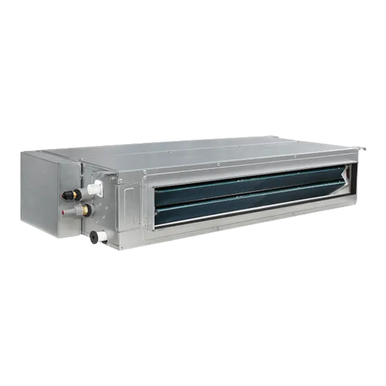

GREE Vireo Gen3 24,000 BTU Slim Duct Concealed Indoor Unit - DUCT24HP230V1BD
brand: Gree
- SKU:
- DUCT24HP230V1BD
- Shipping:
- Free Shipping
GREE Vireo Gen3 24,000 BTU Slim Duct Concealed Indoor Unit - DUCT24HP230V1BD
The GREE Vireo Gen3 DUCT24HP230V1BD is a 24,000 BTU/h (nominal) slim duct concealed indoor unit for ductless heat pump systems. The largest unit in the Vireo slim duct lineup, it delivers variable capacity from 3,200 to 28,000 BTU/h cooling and 4,000 to 29,000 BTU/h heating. The 11-7/8" slim profile conceals in ceiling spaces, with 0.8" W.C. rated static pressure for longer duct runs, built-in drain pump, and both wireless and wired remote controls included.
Indoor Unit Only
This is a concealed slim duct indoor unit. It requires a compatible GREE outdoor condenser (sold separately) such as a Vireo single-zone or MULTI multi-zone unit. Refrigerant line set and ductwork also required. When paired with the 3VIR24HP230V1AO outdoor unit, this combination is ENERGY STAR certified at 20 SEER / 10 HSPF.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | GREE |
| Model Number | DUCT24HP230V1BD |
| Series | Vireo Gen3 |
| Product Type | Slim Duct Concealed Indoor Unit |
| System Type | Heat Pump (Cooling + Heating) |
| Nominal Capacity | 24,000 BTU/h |
| Cooling Range (Min-Max) | 3,200 - 28,000 BTU/h |
| Rated Heating Capacity @ 47°F | 24,000 BTU/h |
| Heating Capacity @ 17°F | 14,900 BTU/h |
| Heating Range (Min-Max) | 4,000 - 29,000 BTU/h |
| SEER / EER | 20 / 12.5 |
| HSPF / COP | 10 / 3.81 |
| Airflow (Min-Max) | 406 - 736 CFM |
| External Static Pressure (Rated) | 0.8" W.C. |
| Sound Level (Indoor) | 28 - 42 dB(A) |
| Sound Level (Indoor) | 28 - 42 dB(A) |
| Dehumidification | 5.3 pt/hr |
| Dimensions (WxHxD) | 44-1/2" x 11-7/8" x 29-3/4" |
| Weight | 93 lbs |
| Refrigerant | R-410A |
| Voltage / Phase / Hz | 208-230V / 1-Ph / 60Hz |
| Line Set Size (Liquid / Gas) | 1/4" / 1/2" |
| Coil Protection | Blue Fin (500 hrs salt spray tested) |
Warranty Coverage
Note: Residential applications only. Warranty terms and conditions apply.
Professional Installation Required
Concealed duct systems require certified HVAC technician installation including ductwork fabrication, refrigerant line set connection, electrical wiring, and vacuum/charge procedures.
Indoor Unit Only — Outdoor Condenser Required
This indoor unit requires a compatible GREE outdoor condenser, refrigerant line set, and ductwork to complete the system. Verify compatibility before purchasing.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
