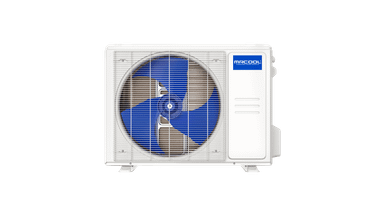

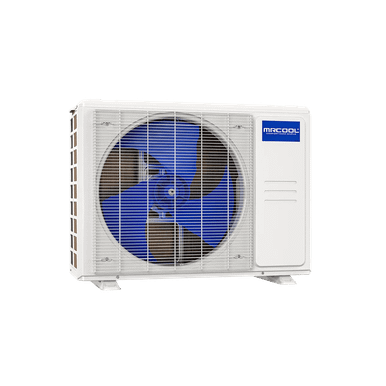

MRCOOL 23,000 BTU 16.5 SEER2 Heat Pump Condenser - DIYS-24-HP-C-230A11-O

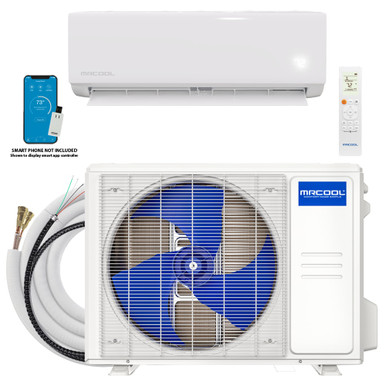

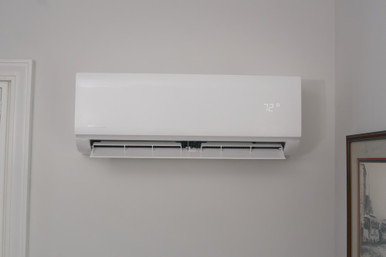

Installing your own HVAC system is easy with the MRCOOL® DIY® Select 24K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser, designed specifically for homeowners. Built for true do-it-yourself installation, it requires no specialized tools, HVAC certifications, or prior experience. Ideal for living rooms, open-concept spaces, large basements, and bonus rooms, it delivers reliable heating and cooling for areas up to 1,050 square feet. The system combines strong performance with energy efficiency, offering a 16.5 SEER2 cooling rating and an 8.3 HSPF2-4 heating rating for consistent, year-round comfort while helping reduce energy costs. Installation is simplified with an 11.5-foot Quick Connect® line set that arrives factory pre-charged with environmentally friendly R-454B refrigerant, eliminating vacuum pumps and refrigerant handling. Most components are included, making setup fast and approachable—even for first-time installers. Comfort control is simple using the included wireless remote or the MRCOOL® Comfort app, which allows temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Features like Sleep Mode, Dry Mode, Auto, and a Gold Fin® condenser coating enhance comfort and durability, even in humid or coastal environments. For added peace of mind, the MRCOOL® DIY® Select system comes with a 2-year compressor warranty and a 1-year parts warranty. This strong, industry-leading coverage demonstrates the pride and confidence MRCOOL has in the craftsmanship and performance of every unit they produce.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | DIYS-24-HP-C-230A11-O |
| Product Type | Heat Pump Condenser |
| Series | DIY Select |
| Tonnage | 2 |
| Cooling Capacity | 23,000 BTU |
| Heating Capacity | 23,000 BTU |
| SEER2 | 16.5 |
| EER2 | 8.6 |
| Refrigerant | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | White |
| Unit Dimensions | 26.5"H x 35.04"W x 13.46"D |
| Shipping Weight | 117.73 lb |
| Parts Warranty | 1 Year Parts |
| Compressor Warranty | 2 Years Compressor |
| Warranty | 1 Year Parts, 2 Years Compressor |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Coverage
1 Year Parts, 2 Years Compressor
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
