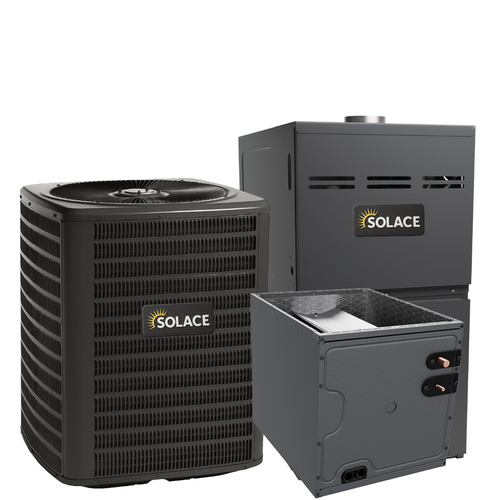

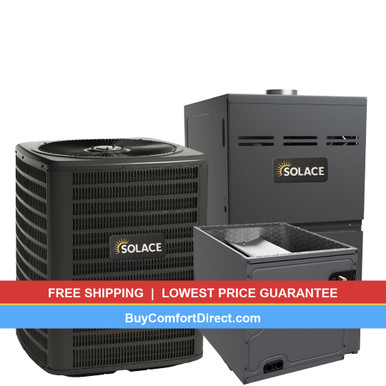

SOLACE 2.5 Ton 14.3 SEER2 R-32 80% AFUE Gas Furnace Air Conditioning System (Upflow Coil)
brand: Solace
- SKU:
- S-GLXS4BA3010,S-GR9S800603ANA,S-CAPTA3022A3
- Shipping:
- Calculated at Checkout
SOLACE 2.5 Ton 14.3 SEER2 R-32 80% AFUE Gas Furnace Air Conditioning System (Upflow Coil)
Experience reliable home comfort with this complete Solace 2.5-ton HVAC system (Upflow Coil). This matched system combines a high-efficiency 14.3 SEER2 air conditioner, a 80% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — S-GLXS4BA3010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLXS4BA3010 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 2.5 Ton |
| Cooling Capacity | 30,000 BTU/h |
| SEER2 Rating | 14.3 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 63 oz |
| Compressor Type | Rotary |
| Voltage/Phase/Frequency | 208/230-1V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 25 A |
| Sound Level | 71 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | ¾" |
| Dimensions (W×D×H) | 29" × 29" × 32.0" |
| Shipping Weight | 160 lbs |
Gas Furnace — S-GR9S800603ANA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GR9S800603ANA |
| Product Type | Gas Furnace |
| BTU Input | 60,000 BTU/h |
| BTU Output | 48,000 BTU/h |
| AFUE | 80% |
| Heating Stages | Two Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 115/1/60V-1-60Hz |
| Min Circuit Ampacity | 7.7 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 14.0" × 12.5" × 33.375" |
| Shipping Weight | 90 lbs |
Evaporator Coil — S-CAPTA3022A3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CAPTA3022A3 |
| Product Type | Cased Upflow Evaporator Coil |
| Tonnage | 2.5 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ⅞" |
| Dimensions (W×D×H) | 17.5" × 21.0" × 22.0" |
| Shipping Weight | 45 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
